YG Dosing Pump
Microprocessor based multifunction pump in surface mounted housing with digital display powerful sophisticated
software program designed to deliver consistent and precise performance regardless of environment conditions, multi-parameter
proportional programs controlled by external analog (4÷20mA) current input signal or digital (water meter) signal for ppm-divide
and multiply dosing including programmable timer for biocide dosing and batch dosing in process control applications.
Technical
Details
» Manufactured in robust wall mounting IP65 rated housing resistant to most aggressive chemical
agents
» PVDF dosing head equipped with manual priming valve - Automatic degassing dosing head available
»
Installation Kit - PVDF Injection Valve and Footvalve - PVC Suction Hose - PE Discharge Hose
» Proportional Modes 1:n (multiply) - n:1 (divide) - PPM - Analog 4÷20mA input signal
»
Timer Dosing Modes - Batch and biocide dosing operations with delay start function
» Statistics
- Stroke Total - Chemical Dosed - Starts - Resetable Counter Function
» Self explanatory
programming with proportional mode memory function
» Patented 100÷240v algorithm reacts to live conditions
to maintain performance
» Remote access through websever with full programming authority
»
Dosing pump model output range :- 0.4÷110 l/Hr
Applications
| Water Treatment | Wastewater | Drinking
Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems |
TG Dosing Pump
Microprocessor based multifunction pump in surface mounted housing with digital display powerful sophisticated
software program designed to deliver consistent and precise performance regardless of environment conditions, multi-parameter
proportional programs controlled by external analog (4÷20mA) current input signal or digital (water meter) signal for ppm-divide
and multiply dosing including programmable timer for biocide dosing and batch dosing in process control applications.
Technical
Details
» Manufactured in robust wall mounted IP65 rated housing resistant to most aggressive chemical
agents
» PVDF dosing head equipped with manual priming valve - Automatic degassing dosing head
available
» Installation Kit - PVDF Injection Valve and Footvalve - PVC Suction Hose - PE
Discharge Hose
» Proportional Modes 1:n (multiply) - n:1 (divide) - PPM - Analog 4÷20mA
input signal
» Timer Dosing Modes - Batch and biocide dosing operations with delay start
function
» Statistics - Stroke Total - Chemical Dosed - Starts - Resetable Counter Function
» Self explanatory
programming with proportional mode memory function
» Patented 100÷240v algorithm reacts to live conditions
to maintain performance
» Remote access through websever with full programming authority
»
Dosing pump model output range :- 0.4÷110 l/Hr
Applications
| Water Treatment | Wastewater | Drinking
Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems |
HG Dosing Pump
Microprocessor based multifunction pump in wall mounted housing with digital display powerful sophisticated
software program designed to deliver consistent and precise performance regardless of environment conditions, multi-parameter
proportional programs controlled by external analog (4÷20mA) current input signal or digital (water meter) signal for ppm-divide
and multiply dosing including programmable timer for biocide dosing and batch dosing in process control applications.
Technical
Details
» Manufactured in robust wall mounted IP65 rated housing resistant to most aggressive chemical
agents
» PVDF dosing head equipped with manual priming valve - Automatic degassing dosing head available
»
Installation Kit - PVDF Injection Valve and Footvalve - PVC Suction Hose - PE Discharge Hose
» Proportional Modes 1:n (multiply) - n:1 (divide) - PPM - Analog 4÷20mA input signal
»
Timer Dosing Modes - Batch and biocide dosing operations with delay start function
» Statistics
- Stroke Total - Chemical Dosed - Starts - Resetable Counter Function
» Self explanatory
programming with proportional mode memory function
» Patented 100÷240v algorithm reacts to live conditions
to maintain performance
» Remote access through websever with full programming authority
»
Dosing pump model output range :- 0.4÷110 l/Hr
Applications
| Water Treatment | Wastewater | Drinking
Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems |
Flow Rate
|
Pressure
|
Max Strokes
|
cc Injection
|
Hose Size
|
Power Watts
|
4.0 L/Hr
|
12 Bar
|
160
|
0.42 ml
|
4 x 6 mm
|
12.2
|
5.0
L/Hr
|
10 Bar
|
160
|
0.52 ml
|
4 x 6 mm
|
|
6.0 L/Hr
|
8 Bar
|
160
|
0.63 ml
|
4 x 6 mm
|
|
8.0 L/Hr
|
2 Bar
|
160
|
0.83 ml
|
4 x 6 mm
|
|
7.0 L/Hr
|
12 Bar
|
300
|
0.38 ml
|
4
x 6 mm
|
23.9
|
10.0 L/Hr
|
10 Bar
|
300
|
0.55 ml
|
4 x 6 mm
|
|
15.0 L/Hr
|
5 Bar
|
300
|
0.83 ml
|
4 x 6 mm
|
|
18.0 L/Hr
|
1 Bar
|
300
|
1.00 ml
|
4
x 6 mm
|
|
20.0 L/Hr
|
5 Bar
|
300
|
1.11 ml
|
4 x 6 mm
|
|
32.0 L/Hr
|
4 Bar
|
300
|
1.78 ml
|
4 x 6 mm
|
|
62.0 L/Hr
|
2 Bar
|
300
|
3.44 ml
|
4
x 6 mm
|
|
110.0 L/Hr
|
0.1 Bar
|
300
|
6.11 ml
|
4 x 6 mm
|
|
Note : - Guidance purposes only manufacturer reserves right to amended
specifications
Pump Outputs & Specifications
Pumps With Modbus WiFi Technology
Pump Technology
Designed using the latest technology a perfect balance has been achieved between using premium
components that ensures reliability and performance with affordability for the operator, through the patented stabilised
multi-range power supply (100– 240v) which reacts to live working conditions to only draw the power required to activate the pump
and reduce energy consumption; the algorithm also compensates for power supply fluctuations for precise and accurate dosing even in
challenging conditions.
Multifunction Program
Chemical dosing powerful microprocessor and digital display with multifunction
programming for timed, proportional (water meter) and analogue 4-20mA operating modes with the option on some models mechanical
stroke length when the application requires for increased dosing precision and maximum control.
Remote Management
Connection to
WI-FI interface webserver - Modbus RTU RS485 Port for integration into complex systems including full programming authority.
Dosage
Outputs
Flow rates 0.4 litres - 110 litres up to 20 bar pressure (see below tables for guidance)

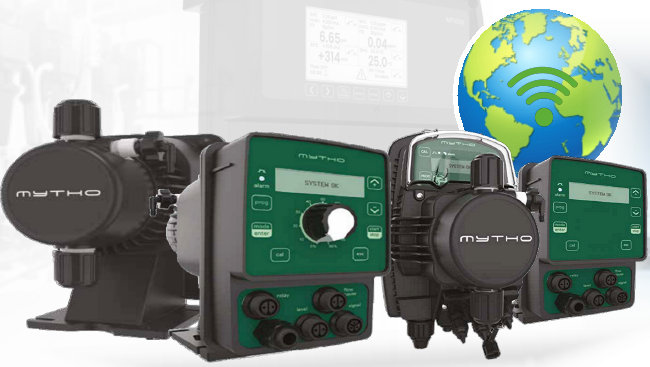

Dosing pumps and instruments with online cloud platform access across multiple locations worldwide
Copyright: - Electronic Dosing Systems 2025
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle
Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing |
Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems
Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
Proportional Dosing Pump
A proportional dosing pump also known as metering pump precisely adds a measured volume
of liquid into a flow stream process to maintain and stabilise the chemical balance in the system regardless
of pressure and flow fluctuations conditions providing a powerful solution in critical water quality control and processes across a
wide range of chemical treatment applications, the conversion of a pulsed (volt free) signal or current 4÷20mA analogue
signal proportionally regulates the speed and volume of chemical dosed according to the chosen operating mode
(ppm-divide-multiply) programmed into the microprocessor software parameters.
Compatible wet-end kits available resistant
to highly aggressive, volatile and toxic chemicals with minimal maintenance requirements for increased chemical
efficiency performance.
Installation Kit
Includes Tubing
Installation Kit
Includes Tubing

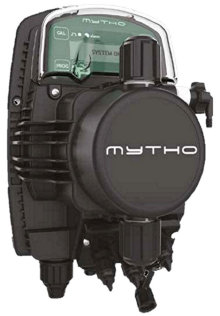

Proportional Dosing Pump
