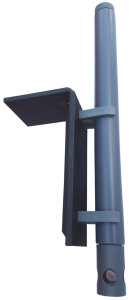

Electrode Holder
Type PIR

Robust tank and open vessel submersible probe holder available depths up to two meters for industrial treatment applications.
Excellent impermeability protection against water ingress that could compromise the stability of the sensor measurements.

Technical Features

»  Shaft : PVC Lengths (0.5÷2mtr) - Max Temperature 40°C - Electrode Diameter : 12mm
»  Encapsulated Electrode Seal : Viton - Mounting Bracket : Snap Fit Adjustable
»  Impermeable waterproof seal connection protects electrode measurement


 N.B. Recommended a reasonable degree of circulation locally to the probe holder.


Applications

| Wastewater | Fish Farming | Oxidation Sludge | Irrigation |


Electrode Holder
Type S315-S

Immersion type electrode holder with impermeability waterproof seal protection eliminate any water-liquid contamination
Specifically designed to house turbidity and suspended solids sensors ensures reliable stable measurement results

Technical Features
»  Shaft : Polyproylene (0.5 - 2.5mtr) - Probe Housing 316 Stainless Steel
»  Probe : 1" (42)  - Temperature 80°C - Encapsulated Electrode Seal
»  Impermeable waterproof seal connection protects electrode measurement


N.B. Recommended a reasonable degree of circulation locally to the probe holder.


Applications

| Wastewater Treatment | Paper Industry | Food Processes | Fish Farming | Biological Treatment |


Submersible Probe
Holders

| Controllers | Electrodes | Sensors |



| Inline Holders | Submersible HoldersBypass-Offline Holders |

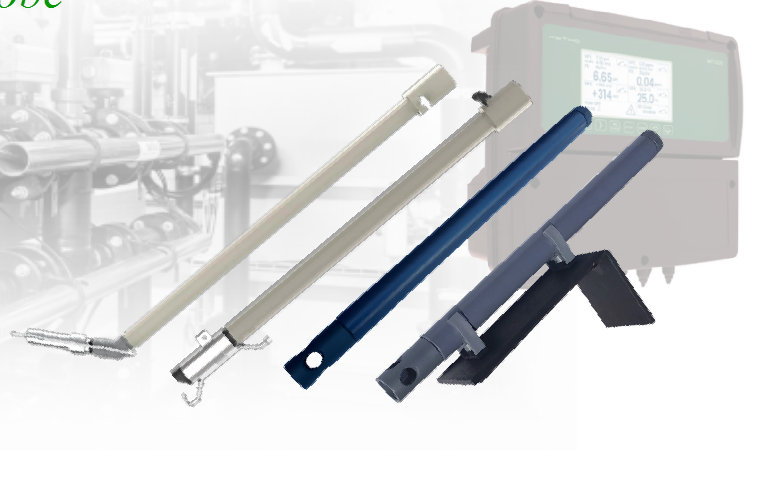

Tank probe holders for pH and redox electrodes available in 0.5 meter to 2.0 meters
   Copyright: - Electronic Dosing Systems 2025
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes

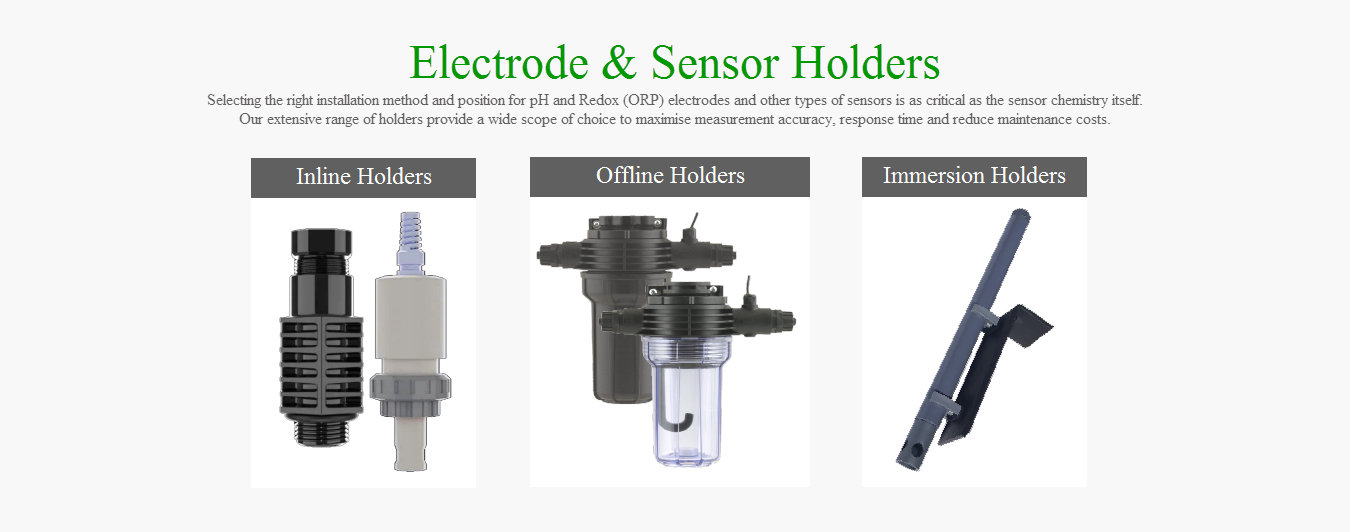

Inline Probe Holders

Range of inline probe and electrode holders manufactured in PVC and Polypropylene for low-medium and high pressure installations excellent chemical resistance for processes with a high-level hygiene requirements being positioned into existing pipework or into a by-pass manifold with flow isolation valves for ongoing maintenance purposes, the simplicity of  design greatly reduces installation time and cost suitable for all types of water treatment processes where pH-redox-chlorine and conductivity probes are being used.


Sample Line Probe Holders

Robust probe holders with integrated mounting bracket with excellent chemical resistance incorporating a flow sensor for protection against chemical over concentration ensuring measurements stay within the desired parameters installed direct into the main pipeline flow or by-pass manifold configuration with isolation valves to interrupt or divert flow during probe servicing or maintenance to the system with electrodes always in contact with the fluid for optimum measurement accuracy and increased chemical dosing efficiency.

Submersible Probe Holders

Robust electrode holders specifically designed for processes in tanks adaptable to any installation with depths up to four meters adjustable mounting flanges for quick installation and removal with excellent impermeability seal protection against water and liquids that could compromise the sensor measurements.

Accommodates
One Probe For:
Electrode Holder
Type PIR 2

Robust tank-open vessel immersion probe holder impermeability seal protection against any water-liquid contamination.
Mounting flange with locking mechanism full height adjustment practical removal of probe calibration and maintenance.

Technical Features

»  Shaft : PVC Lengths (0.5÷2mtr) Available - Max Temperature 40°C - Electrode Diameter : 12mm
»  Encapsulated Electrode Seal :- Viton - Mounting Flange : Adjustable with locking mechanism
»  Impermeable waterproof seal connection protects electrode measurement


N.B. Recommended a reasonable degree of circulation locally to the probe holder.


Applications

| Wastewater | Fish Farming | Oxidation Sludge | Irrigation |
Accommodates
One Probe For:
Electrode Holder
Type S315-O

Probe holder with 45° PVC curve for tanks with impermeability seal protection against any water-liquid contamination.
Suitable for water treatment - biological treatment - fishing farming applications excellent sensor measurement stability.

Technical Features

»  Shaft : Polyproylene (0.5 - 2.5mtr) - Probe Housing 316 Stainless Steel
»  PVC 45° Bend - Temperature 80°C - Encapsulated Electrode Seal
»  Impermeable waterproof seal connection protects electrode measurement


N.B. Recommended a reasonable degree of circulation locally to the probe holder.


Applications

| Water Treatment | Fish Farming | Biological Treatment |

Accommodates
One Probe For:
Accommodates
One Probe For:
