Chemical Dosing Injection Manifolds

 PVC chemical injection manifold with spring non-return valve to prevent chemical back flow contamination and maintain continuous stabilised electrode measurement with multiple injection points to accommodate each chemical being dosed into the system with manual isolation valves for servicing  maintenance, designed to be installed direct into the main pipeline flow alternatively through a bypass manifold configuration to divert flow during servicing of electrodes, probes and dosing pump injection valves inspection.


Chemical Injection
Assembly's



   Copyright: - Electronic Dosing Systems 2025
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
Accommodates
Multiple Electrodes
eds_website_march_2025_latest002013.jpg Dosng pump retractable chemical injection lance and chemical injection manifolds

Chemical Injection Assembly
Pvc injection flow manifold housing electrodes to monitor the water quality and chemical injection points with non-return valve to prevent backflow and contamination of measurement readings, assembly can be installed inline or through a bypass manifold configuration with diverter valves for maintenance of measurement sensors and chemical injections valves.

Technical Details

»  Custom configuration tailored for multiple electrodes and chemicals dosed into system
»  Flow non-return valve eliminates chemical backflow separates sensor measurements
»  Designed for installation into existing pipework or through bypass sample manifold
»  Convenient for routine sensors and injection valves servicing and maintenance


Applications

| Cooling Towers | Wastewater | Swimming Pools | Drinking Water | Irrigation |

Chemical dosing pump injection valve in PVDF
Accommodates Multiple
Injection Valves
N.B. Manifold configured to application requirements and existing pipework size
PVC chemical injection manifold assembly for water treatment applications Dosng pump retractable chemical injection lance and chemical injection manifolds

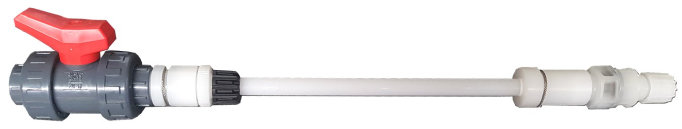

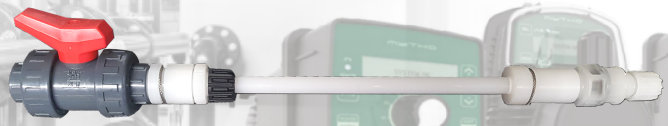

Retractable Injection Quill

Retractable injection quill designed for insertion into large diameter pipework with adjustable locking mechanism and impermeable seal that enables the quill to be retracted and inserted to required depth without need to perform a complete system depressurization invaluable when dosing chemicals that are prone to clogging, the design maximises chemical treatment with the injection point positioned in the centre of the pipeline flow and can be withdrawn for inspection and servicing through the isolation maintenance valve.

Retractable injection lance for chemical dosing pumps
Chemical Injection Quill
Chemical injection quill with retractable lance for insertion to the desired depth direct into the pipeline flow for maximum chemical treatment delivered by the dosing pump to maintain the water quality in the system, the isolation valve allows the quill to be completely withdrawn from the pipework for inspection of the injection valve and servicing of the quill assembly.

Technical Details

»  Adjustable quill mounted direct in pipeline flow maximum chemical treatment in the system
»  Compression locking mechanism with impermeable seal safeguards chemical treatment
»  Designed for mounting into the existing pipeline flow with maintenance isolation valve
»  Robust chemically resistant material suitable for wide range process applications


Applications

| Cooling Towers | Wastewater | Swimming Pools | Drinking Water | Irrigation |
eds_website_march_2025_latest002013.jpg PVDF injection valve for chemical dosing pumps
Injection Valve
Mounted On Quill
N.B. Adjustable quill insertion depth and impermeable seal locking mechanism

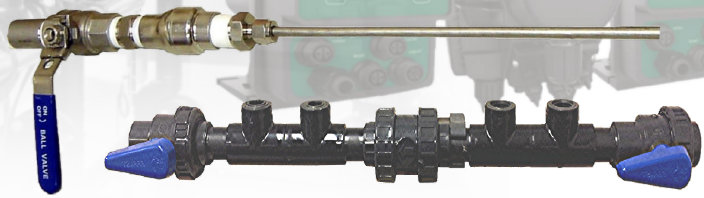

High Temp Injection Lance

Stainless steel injection quill specifically designed to overcome the challenge of introducing chemical treatment into process applications with high temperature pipeline streams via an external injection lance assembly incorporating manual isolating ball valve with one meter dissipating heat shield lance and non-return valve to prevent backflow, the heat reduction down the lance allows the injection valve supplied with the dosing pump to be connected to the low temperature end of the injection lance.
Injection Quill
Safety Mechanism
eds_website_march_2025_latest002013.jpg Chemical dosing pump injection fitting in PVDF exceptional chemical resistance with spring non-return ball valve
Injection Valve
Mounted On Lance
High temperature stainless steel chemical injection lance for high pressure applications
Injection Lance
Chemical injection lance in stainless steel designed for challenging high temperature process environments requiring chemicals dosed directly into the pipeline flow stream delivering an effective treatment into the system, the isolation valve and inline non-return valve allows servicing of the dosing pump components including the injection valve connected to the heat shield lance.

Technical Details

»  Lance mounted direct in pipeline flow maximum chemical treatment in the system
»  Stainless steel construction for high temperature and high pressure environments
»  Direct connection on to existing pipeline stream with maintenance isolation valve
»  Non-return valve additional protection against chemical and pressure backflow


Applications

| Water Systems | Wastewater | Boilers | Electroplating| Irrigation |
N.B. Temperature dissipates through lance protects damage to chemical injection valve
Injection Valve
Mounting Socket
