Mechanical Diaphragm Dosing Pump
(Proportional Microprocessor Controller)









Mechanical Diaphragm Dosing Pump
(Proportional Microprocessor Controller)

Mechanical piston and diaphragm dosing pumps with integrated proportional microprocessor controller with internet connectivity bringing operators and engineers closer than ever to their systems providing invaluable live and historical data in real-time from any location worldwide, bringing full control to application managers the ability to remotely monitor and adjust key parameters such as chemical concentration levels and flow rate during live working conditions via PC, laptop, tablet or smartphone optimising chemical efficiency.

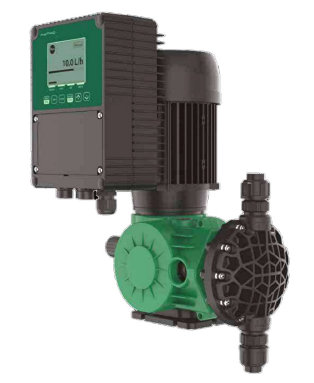

Electronic motor-driven metering pump range with integrated multifunction controller

Webserver Interface Data On Demand
Information available to the operator locally or remotely through the web interface portal

| Real-Time Data | Parameter Settings | Pump Statistics | Alarms Status | Webserver Pages | Cloud Storage Platform |

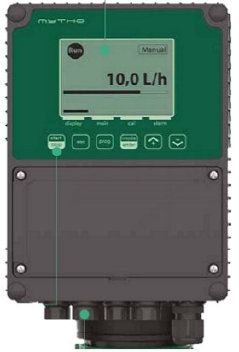

Mechanical dosing pump proportional multifunction controller
Smart Intelligent Graphic Display
Intuitive Interface Changes Colour According To Operating Function
Microprocessor Controller
Display          Main          Calbr         Alarm                        Display          Main          Calbr         Alarm                        Display          Main          Calbr         Alarm
AMBER DISPLAY
Controller Communicating
Smart Device
RED DISPLAY
Alarms Status Activated
Check System
GREEN DISPLAY
Successful Parameter
Schedule Updated

Pumps With Modbus WiFi Technology



Dosing pumps and instruments with online cloud platform access across multiple locations worldwide
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
   Copyright: - Electronic Dosing Systems 2025

Diaphragms Dosing Pumps

Motor driven diaphragm dosing pumps uses a reciprocating motion driven by the rotation of the motor speed causing the diaphragm mechanism  to complete the suction and discharge process inside the dosing head ensuring the amount of chemical displaced is both linear and repeatable, adjustment of the stroke length alters the movement of the diaphragm therefore increasing or decreasing volume of chemical displaced with each stroke cycle respectively with the relationship between the stroke length and chemical volume dosed linear. Manufactured using premium materials that deliver superior robustness excellent chemical compatibility coupled with extreme accurate metering performance.

Diaphragm Metering Pumps

Mechanical diaphragm metering pump is designed using a fixed ratio gearbox driven by the motor speed rotation in a reciprocating action against the spring-return mechanism attached to the pump diaphragm to ensuring the amount of fluid displaced is both linear and a repeatable manner, manual adjustment of the diaphragms stroke length alters the volume of chemical displaced with each stroke cycle respectively with the relationship between stroke length and chemical volume delivered linear essential when used critical process applications. The significant benefit of a diaphragm metering pump is only the PTFE diaphragm resistant to most chemicals and pump head itself is in contact with the chemical.





V Series Metering Pumps
Specifically designed diaphragm and piston metering pumps with spring-return mechanism offering extreme precision reliability and performance even under fluctuating pressure conditions, due in principal to permanent lubrication of all components preventing overheating benefiting from quiet running whilst maintaining accuracy and performance throughout the dosage scale.

Technical Details

»  Pumps designed to operate continuously over long periods with repeatable precision reliability and performance
»  Diaphragm direct spring-return mechanism optimises and maintains accuracy in high pressure environments
»  Variable eccentric system exploits motors power during suction-discharge phases for a smooth linear output
»  Multiple chemical resistant dosing heads and seals suitable for high-viscosity chemical process applications

Digital Process Controller

»   Microprocessor controller allows users to link signals from the field to monitor control dosage parameters
»   Multiple operating modes - Manual - Timed - Batch - Proportional (pulse)  - PPM - Proportional (mA)
»   Statistics - Stroke Total - Chemical Dosed - Starts - Resetable Counter Function
»   Remote access through websever IoT connection with full programming authority

»  Piston pump R2 model flow rate :- 1000 Ltr/Hr to 20 Bar
»   Piston pump R1 model flow rate :- 304 Ltr/Hr to 20 Bar
»   Diaphragm pump flow rate :- 500 Ltr/Hr to 16 Bar

Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |

Controller can be mounted in multiple positions on motor to aid installation
pH Electrodes
Redox Electrodes
Conductivity Probes
Conductivity Electrodes
Chlorine- Chlorine Dioxide Sensors
Bromine-Hydrogen PPM Sensors
Electrodes-Probes
Sensors
Home
Contact us
pH Controllers
Redox Controllers
Chlorine Controllers
Conductivity Controllers
Multi-Parameter Controllers
Digital Instruments
Controllers
Dosing Pumps (Constant)
Proportional Dosing Pumps
Instrument Dosing Pumps
Dosing Pumps ATEX Zone 2
Chemical Dosing
Pumps
Dosing Tanks - Bunds
Multi Jet Water Meters
Woltmann Water Meters
Dosing Tanks
Water Meters
Inline Probe Holders
By-Pass Probe Holders
Submersible Probe Holders
Electrodes-Probes
Holders
Mechanical Diaphragm Pumps
Mechanical Piston Dosing Pumps
Mechanical Digital Dosing Pumps
Mechanical
 Metering Pumps
Injection Valves
Foot Valves
Multifunction Pressure Valves
Pressure Loading Valves
Injection Quills
Chemical Dosing Tubing
Dosing Pump
Spares

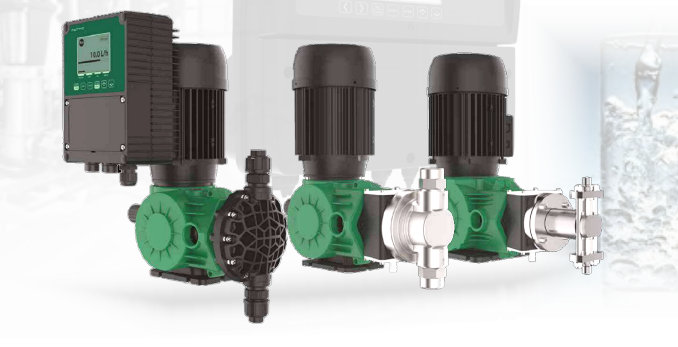

Proportional mechanical dosing pump range with microprocessor controller
