Modular Bypass Housing

Integrated Reed Switch

Key Features

• Polypropylene bypass housings resistant to wide range of corrosive chemicals, acids, and bases

• Versatile holder engineered to accommodate 33 - 36 & 42mm diameter analytical type sensors

• Integrated flow switch only allows dosing when there's sufficient sample flow across the sensors

• Specifications: Type PSS-8B1-HP - pH Range 2.7÷12 - Temperature 40°C - Pressure 5 Bar

• Once installed sensors are always in contact with the water for continuous measurement

Applications

Modular Bypass Housing

Integrated Reed Switch

Key Features

• Transparent acrylic housings allows visual inspection of the electrodes condition and flow status

• Specifically for stable measurement of 24mm diameter amperometric and potentiostatic sensors

• Integrated flow switch only allows dosing when there's sufficient sample flow across the sensors

• Specifications :- Type PSS-8C - pH Range 4÷10 - Operating Temp 40°C - Pressure 2 Bar

• Once installed sensors are always in contact with the water for continuous measurement

Applications

Modular Bypass Housing

Integrated Reed Switch

Key Features

• Characterised by good transparency and excellent compatibility with aggressive chemical media

• Designed to house standard 12mm and PG 13.5, pH, redox (ORP) or conductivity electrodes

• Integrated flow switch only allows dosing when there's sufficient sample flow across the sensors

• Specifications :- Type PSS-8A (2 Bar) - Temp 40°C | Type PSS-8A-HP (5 Bar) Temp 20°C

• Once installed probes are always in contact with the water for continuous measurement

Applications

Flow-Through Holder

Integrated Filter System

Key Features (Type PSS-1)

•   Characterised by good transparency and excellent compatibility with aggressive chemical media

•   Designed to house standard 12mm industrial pH, Redox (ORP) or conductivity type electrodes

•   Suitable for medium pressure environments good transparency and integrated mounting bracket

•   Ideal solution for applications where maintenance accessibility and electrode longevity is critical

•   Once installed the probe is always in contact with the water for continuous measurement

   Applications

   | Cooling Towers | Swimming Pools | Wastewater | Drinking Water | Potable Water | Irrigation Systems |

Modular Bypass Housing

Integrated Reed Switch

Key Features

• Polypropylene bypass housings resistant to wide range of corrosive chemicals, acids, and bases

• Designed to house standard 12mm and PG 13.5, pH, redox (ORP) or conductivity electrodes

• Integrated flow switch only allows dosing when there's sufficient sample flow across the sensors

• Specifications: Type PSS-8A1 (2 Bar) Temp 40°C | Type PSS-8A1-HP (5 Bar) Temp 20°C

• Once installed probes are always in contact with the water for continuous measurement

Applications

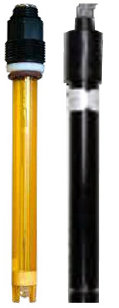

Bypass pH Electrode

Probe Holders

Accommodates
One Probe For:

pH Electrodes

Redox Electrodes

Conductivity Probes

Conductivity Electrodes

Chlorine- Chlorine Dioxide Sensors

Bromine-Hydrogen PPM Sensors

Electrodes-Probes
Sensors

Home

pH Controllers

Redox Controllers

Chlorine Controllers

Conductivity Controllers

Multi-Parameter Controllers

Digital Instruments
Controllers

Dosing Pumps (Constant)

Proportional Dosing Pumps

Instrument Dosing Pumps

Dosing Pumps ATEX Zone 2

Chemical Dosing
Pumps

Dosing Tanks - Bunds

Multi Jet Water Meters

Woltmann Water Meters

Dosing Tanks
Water Meters

Inline Probe Holders

By-Pass Probe Holders

Submersible Probe Holders

Electrodes-Probes
Holders

Mechanical Diaphragm Pumps

Mechanical Piston Dosing Pumps

Mechanical Digital Dosing Pumps

Mechanical
Metering Pumps

Injection Valves

Foot Valves

Multifunction Pressure Valves

Pressure Loading Valves

Injection Quills

Chemical Dosing Tubing

Dosing Pump
Spares

Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk

Solutions For All Metering & Measurement Processes

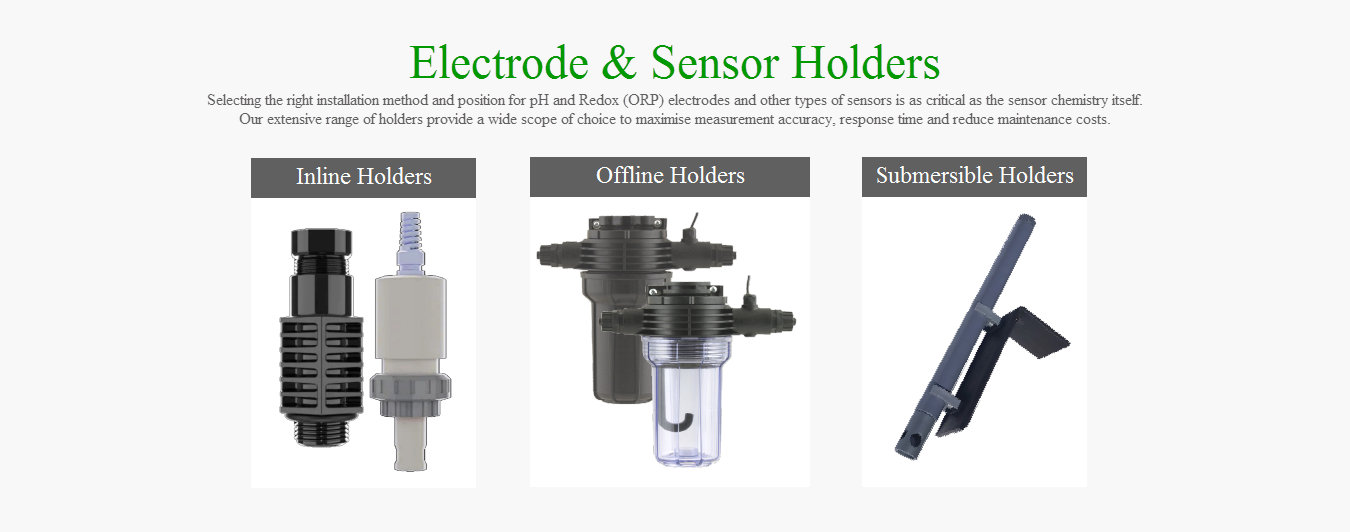

range of immersion probe holders for pH and redox electrodes

The Benefits of Bypass Sensor Holders:

In high-demand water treatment and industrial processing, accuracy isn't just a goal—it’s a requirement. Standard "in-line holder" installations often expose sensitive electrodes and sensors to turbulent flows and harsh conditions that can lead to premature failure or skewed measurements, using a Bypass Probe Holder (referred to "off-line" or "sample line" housings) provides a controlled environment for the continuous monitoring of pH, Redox and chlorine levels without exposing the delicate sensors to high pressure, turbulence, or abrasive flow of the main process stream ensuring they perform at their absolute peak an essential component in industrial water treatment applications where sensor longevity & ease of maintenance are priorities.

Stable Measurement Environment:

Whether your managing a small municipal pool or an industrial complex water treatment system incorporating by diverting a small side-stream of process water you eliminate the fluctuations normally found in the main flow stream creating a consistent stable measurement environment & significantly reducing sensor degradation.

Integrated Flow Control:

Our range of pH, redox (orp) and chlorine bypass holders provide real-time safety through an integrated flow switch that acts as a failsafe in the event the water flow drops below a critical level the switch can trigger an alarm or automatically disabled the dosing pumps preventing chemical overdosing or sensor dry-out.

Simplified Maintenance:

Perform simple tasks such as electrode calibrations and sensor replacements without shutting down your entire main process line for routine maintenance by closing the bypass isolation valves you can remove the sensor for cleaning and calibration or replace it all within minutes with minimal impact to the working environment.

Flow-Through pH and Redox Electrode Holder

Designed for precise and continuous monitoring in industrial water treatment medium pressure applications installed direct into the main flow stream or through a bypass sample line loop with the internal chamber designed to minimise turbulence & air entrapment around the sensing tip for optimal stable readings, characterised with good transparency and excellent resistance to chemical agents this holder is the ideal interface for integrating standard 12mm diameter pH, Redox and conductivity electrodes into your piping system.

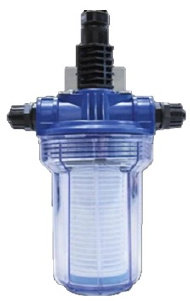

pH and redox electrode transparent probe holder for multiple water treatment applications

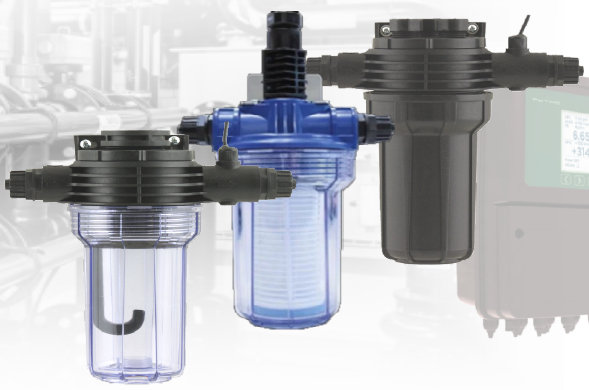

Modular pH and redox electrode bypass housing with integrated flow switch for multiple water treatment applications

Modular Bypass Assembly with Integrated Flow Switch:

Transparent bypass holder engineered for the precise monitoring of chlorine, bromine, hydrogen peroxide and peracetic acid levels in water treatment processes specifically designed to be installed into a sample offline stream to optimise reading performance whilst protecting sensors from harsh conditions, integrated mechanical flow switch provides an essential layer of security automatically alerting the controller when the flow drops below the required threshold preventing "dry-run" errors and inaccurate readings.

Amperometric sensor transparent modular bypass housing with integrated flow switch suitable multiple water treatment processes

Modular Offline Holder with Integrated Flow Switch:

Polypropylene bypass assembly engineered for the precise monitoring of dissolved oxygen, suspended solids and turbidity levels in water treatment processes specifically designed to be installed into a sample offline stream to optimise reading performance whilst protecting sensors from harsh conditions, integrated mechanical flow switch provides an essential layer of security automatically alerting the controller when the flow drops below the required threshold preventing "dry-run" errors and inaccurate readings.

Polypropylene bypass housing with integrated flow switch for suspended solids, dissolved oxygen and turbidity sensors

Accommodates
Three Probes For:

Bypass Housing - pH/Redox Probes - Integrated Flow Sensor:

Polypropylene modular housing for monitoring of pH, redox, conductivity and temperature levels in industrial water treatment and process applications specifically designed to be installed into a bypass sample stream to ensure optimal sensor performance whilst protecting sensors from harsh conditions, the built-in flow sensor provides an additional layer of security by automatically alerting the system when the flow drops below the required threshold to disable chemical dosing and prevent inaccurate measurement.

pH/Redox Probe Bypass Housing - Flow Switch

Robust bypass housing for the monitoring of pH, redox, conductivity and temperature levels in industrial water treatment and process applications specifically designed to be installed into a sample stream from the main process line to ensure optimal sensor performance whilst protecting electrodes from harsh conditions, integrated mechanical flow switch provides an essential layer of security automatically alerting the controller when the flow drops below the required threshold preventing "dry-run" errors and inaccurate readings.

Accommodates
Three Probes For:

Accommodates
One Probe For:
