Chemical Spillage Bunds
Bund tanks an important consideration to eliminating chemical contamination entering the surounding area particularly when aggressive chemical are being stored or the integrity of a dosing tank or become compromised.

Technical Details

»  Rolled over edge for greater mechanical strength
»  Designed to contain 115% dosing tank capacity
»  Manufactured in medium density polyethylene
»  Protects dosing tank from impact damage



N.B. We strongly advise using bund tanks as a additional protective layer for chemical containment

Chemical Dosing Tanks

Dosing tanks for use in water and waste treatment management and  process control applications manufactured in food grade MDPE with smooth internal and external surfaces with graduated scale displaying volume of chemical contained ins the dosing tank, incorporates a split-level design for additional strength with the flat upper section being utilised for mounting of chemical dosing pumps, electrical mixers and other process equipment with screw sealed lid to maintain the tanks chemical integrity.


Dosing Tank Specifications

Chemical Dosing Tank

Manufactured in medium density polyethylene with a graduated volume scale on side of tank split level design upper section for the mounting of equipment such as dosing pumps, mixers and equipment with screw lid on the lower level.

Black Dosing Tanks
Resistance to the effects of UV radiation for processes where low vapour pressure chemicals are being stored such as Sodium Hypochlorite and Hydrogen Peroxide eliminating chemical instability whilst maximising chemical treatment efficiency.

Technical Details

»  Manufactured from medium density polyethylene
»  Screw lid (255mm) with seal for chemical filling
»  Split level design allows mounting of equipment
»  UV stabilised suitable for low vapour chemicals



N.B. We strongly advise using bund tanks as a additional protective layer for chemical containment
     Capacity
Diameter (mm)
Diameter
 Height (mm)
 Height
Weight
     50 Litres
425mm
17"
500mm
20"
3.5 Kg
    100 Litres
495mm
20"
700mm
28"
7.5 Kg
   200 Litres
635mm
25"
785mm
31"
11.0 Kg
   300 Litres
660mm
26"
1075mm
43"
16.5 Kg
   500 Litres
815mm
32"
1100mm
44"
21.0 Kg
   1000 Litres
1065mm
42"
1355mm
54"
35.0 Kg
Bund Tanks Specifications
     Capacity
 Diameter (mm)
Diameter
 Height (mm)
 Height
  Weight
    35 Litres
300mm
12"
370mm
15"
1.5 Kg
    50 Litres
680mm
27"
285mm
13"
2.7 Kg
   100 Litres
805mm
32"
325mm
13"
4.0 Kg
   200 Litres
970mm
38"
395mm
16"
6.0 Kg
   300 Litres
 940mm
37"
620mm
25"
5.8 KG
   500 Litres
1130mm
45"
680mm
27"
11 Kg
  1000 Litres
1825mm
72"
560mm
23"
15 Kg







Chemical Bund Tanks

Bund tanks manufactured in blow moulded medium density polyethylene with rolled over edge for additional strength with smooth internal and external surfaces corresponds to 115% capacity of the equivalent sized chemical dosing tank provides an additional layer of protection and containment of chemical any spillage to the surounding area, in the unlikely event associated the integrity of the dosing tank becomes compromised or any leakages materialize from equipment and associated connected pipework.



Chemical Dosing
Tanks & Bunds

   Copyright: - Electronic Dosing Systems 2025
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
eds_website_march_2025_latest002013.jpg Chemical dosing tanks 50 litre to 1000 litres capacity

Tanksets For Process Applications

We can supply complete dosing tanksets ready to be integrated into all types of water treatment, waste management and process control applications either as a stand alone dosing system or built to Be used in more complex process applications and environments, equipment such as chemical dosing pumps, industrial mixers, liquid level systems including associated pipework and flow control valves to integrate into the existing process or to accommodate a new process can be mounted on to all our dosing tanks.


Bund Tank Sizing For Equipment

In the event the chemical dosing tank design requires the dosing pump or incorporates a flooded suction manifold assembly pipework mounted at the foot of the chemical tank we strongly recommend using at least the next sized bund tank to accommodate all the equipment within the containment area, maximising the bund size increase the safety aspect and integrity of the dosing system installation safeguarding against any accidental damage to equipment and serious injury to personnel working in the immediate vicinity.
Chemical Drum 35l Bunds
Compact chemical bund eliminates chemical contamination entering the surounding working area particularly with aggressive liquids provides  additional layer of stability and protection against damage to the chemical drum .

Technical Details

»  Rolled over edge for greater mechanical strength
»  Designed to contain 115% dosing tank capacity
»  Manufactured in medium density polyethylene
»  Protects chemical drum from impact damage



N.B. We strongly advise using bund tanks as a additional protective layer for chemical containment

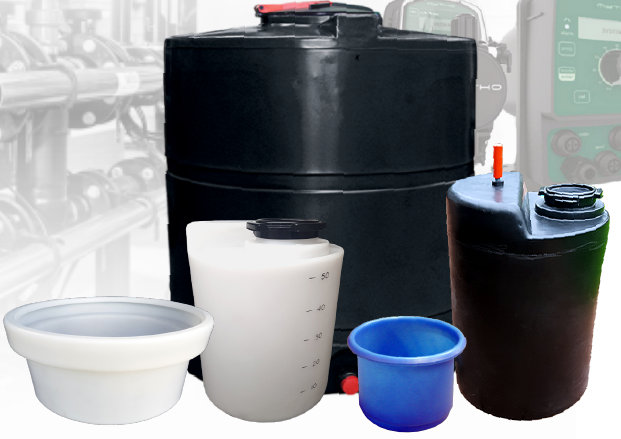

Small Chemical Bunds

Small chemical bund container manufactured in blow moulded medium density polyethylene with rolled over edge for additional strength with smooth internal and external surfaces design to store chemical drums up to 30 litres in capacity provides additional layer of protection and containment to the surounding area, in the event the chemical drums mechanical integrity becomes compromised or any leakages materialize from equipment and associated pipework connected to the dosing system.

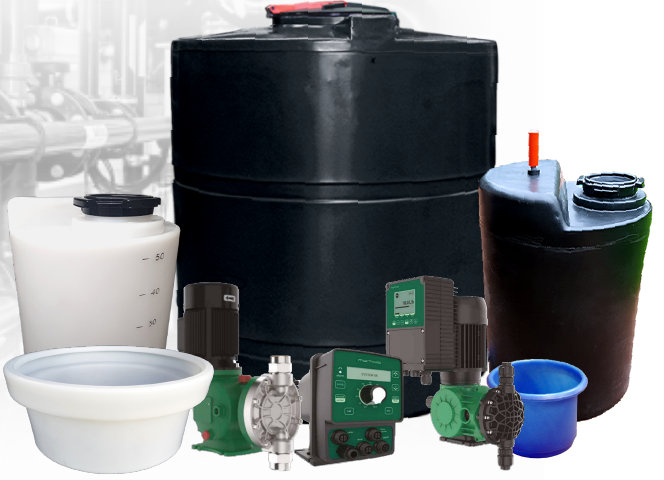

eds_website_march_2025_latest002013.jpg Chemical bund tanks 50 litre to 1000 litres capacity Chemical dosing tanks and bunds 35 litres to 1000 litres Chemical bund tank 35 litres capacity
N.B. Capacity 115% Of Equivalent Sized Chemical Dosing Tank
