YL Series Metering Pumps
Digital metering pump with patented power algorithm designed to optimize energy consumption
and maximise the pump's performance by compensating to changes in live operational conditions maintaining a stable and precise dosing
rate without sacrificing the pumps integrity or performance with ease of use functionality, these state of-the-art pumps
benefits from a wide range of flow rates and superior chemical compatibility with optional mechanical stroke length available
for processes requiring the highest degree of accuracy and chemical efficiency providing unparalleled operational
confidence and system performance.
Available with Modbus RTU RS485 port interface for remote management access
via internal webserver with full programming authority via online server.
Patented Metering Algorithms
The patented
power algorithm offers a fundamental shift in chemical engineering it intelligently compensates for any environment
fluctuations adapting the power delivered to the solenoid adjusting its performance based on the required flow rate, fluid
viscosity and system pressure to ensure the pump operates at it's optimum efficiency.
Dosing Applications
Ideal for
a wide range of industries including water treatment, chemical manufacturing, hydroponics and food and beverage production.
Often integrated
with other process equipment in multiple water treatment and chemical engineering applications.
Ideal for
a wide range of industries including water treatment, chemical manufacturing, hydroponics and food and beverage production.
Often integrated
with other process equipment in multiple water treatment and chemical engineering applications.
HS Series Dosing Pumps
Extensive range of cost effective manually adjustable chemical dosing pumps in
IP65 surface mounted housing engineered for continuous operation coupled with ease of use functionality to enable operators
to fine tune chemical metering at the desired rate with repeatable precision maximising chemical efficiency even in
the most challenging of environments, equipped with sophisticated electronics and components the HS range
of dosing pumps deliver enhanced metering precision and chemical efficiency ideal for a wide spectrum
of commercial and industrial applications.
Dual Frequency Dosing
Equipped with two operating ranges this
innovative design offers unparalleled adaptability allows the user to transition between two distinct metering frequencies
high for rapid dosing or low-frequency for processes with less chemical needs or with variable operating conditions offering improved
chemical efficiency.
Intelligent Metering Algorithm
The patented power algorithm offers a fundamental shift in chemical engineering it intelligently compensates
for any environment fluctuations adapting the power delivered to the solenoid adjusting its performance based on the required
flow rate, fluid viscosity and system pressure to ensure the pump operates at it's optimum efficiency.
Typical Applications
|Water Treatment | Cooling Towers | Industrial Boilers | Wastewater | Drinking Water | Swimming Pools | Food
& Beverage | Agricultural Systems |
(Examples :- dosing biocides - corrosion inhibitors - pH
adjustment acid & alkali dosing - chlorine dosing - dosing nutrients - dosing bromine - chlorine dioxide
dosing)
Often integrated with other process equipment in multiple water treatment and chemical engineering
applications.
Dual Frequency Dosing
Equipped with two operating ranges this
innovative design offers unparalleled adaptability allows the user to transition between two distinct metering frequencies
high for rapid dosing or low-frequency for processes with less chemical needs or with variable operating conditions offering improved
chemical efficiency.
|Water Treatment | Cooling Towers | Industrial Boilers | Wastewater | Drinking Water | Swimming Pools | Food
& Beverage | Agricultural Systems |
(Examples :- dosing biocides - corrosion inhibitors - pH
adjustment acid & alkali dosing - chlorine dosing - dosing nutrients - dosing bromine - chlorine dioxide
dosing)
Often integrated with other process equipment in multiple water treatment and chemical engineering
applications.
Key Features
* Built to handle challenging environments using superior components redefining durability
and fluid management
* Eliminates potential human error operators can specifically the desire flow rate
to maximise chemical efficiency
* Monitor current operating status in real-time - detect potential
metering issues - improves system management
* User-friendly menu with password protection
safeguards parameter settings against unauthorised amendments
* Chemical level protection secures pumps operational
integrity & additional damage to mechanical components
* Comprehensive Flow Outputs
:- 0.4÷110 litres/Hr - Pressure 0.1÷20 Bar (auto-bleed head availible)
* Patented 100÷240v algorithm
reacts to live working conditions to maintain performance
Standard Installation Kit:
Resistance against a broad
spectrum of chemicals engineered for durability and high pressure processes
Fittings Included : - PVDF Injection
Valve - PVDF Footvalve - PVC Suction Hose - PE Discharge Hose
Key Features
* Built to handle challenging environments using superior components redefining durability
and fluid management
* Stroke frequency programmed via keypad offering unparalleled performance
regardless of working conditions
* Monitor current operating status in real-time - detect potential
metering issues - improves system management
* User-friendly menu with password protection
safeguards parameter settings against unauthorised amendments
* Chemical level protection secures pumps operational
integrity & additional damage to mechanical components
* Comprehensive Flow Outputs
:- 0.4÷110 litres/Hr - Pressure 0.1÷20 Bar (auto-bleed head availible)
* Patented 100÷240v algorithm
reacts to live working conditions to maintain performance
Standard Installation Kit:
Resistance against a broad
spectrum of chemicals engineered for durability and high pressure processes
Fittings Included : - PVDF Injection
Valve - PVDF Footvalve - PVC Suction Hose - PE Discharge Hose
Key Features
* Chemical-resistant housing for harsh environments with minimal maintenance requirements
and long service life
* Exceptional precision throughout dosage scale minimizing chemical waste and optimising process
performance
* Stroke frequency potentiometer with percentage dial allows manual adjustment to the
desired dosing flow rate
* Integrated frequency range selection keypad for rapid and low chemical consumption
and system performance
* Comprehensive Flow Outputs :- 0.4÷110 litres/Hr - Pressure 0.1÷20 Bar (auto-bleed
head availible)
* Patented 100÷240v algorithm reacts to live working conditions to maintain performance
Standard Installation
Kit:
Resistance against a broad spectrum of chemicals engineered for durability and high pressure processes
Fittings Included
: - PVDF Injection Valve - PVDF Footvalve - PVC Suction Hose - PE Discharge Hose

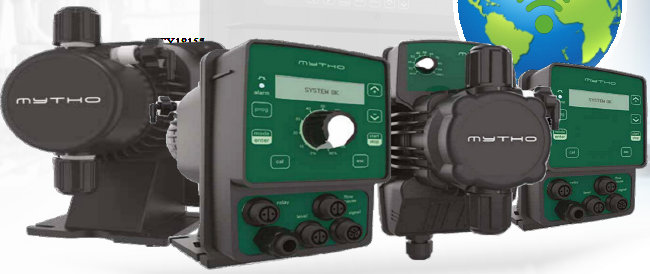

Chemical Dosing Pumps
Precision and Control for Your Chemical Processes
Comprehensive range of dosing pumps with
manual adjustment manufactured using premium grade electronic components and mechanical parts offers a perfect blend
of reliability, precision and ease of use ensuring accurate and efficient chemical injection across a wide range of applications
designed to handle a wide variety of fluids, from corrosive chemicals to viscous liquids, available in wall and surface mounted
housing our pumps provide the flexibility you need for effective water treatment, process control, and industrial chemical engineering applications.
Dosing
Heads (Wetted Ends)
We offer a comprehensive range of robust dosing head configurations engineered to handle the most volatile
and aggressive chemicals crucial to the pumps operational integrity with special seals available offering superior
performance particularly in harsh environments.
Choose the right pump for your applications
Whether you require
a cost effective dosing pump or digital metering pump for enhanced control our comprehensive range
of manually adjustable dosing pumps has the perfect solution for your applications.
|
Flow Rate
|
Pressure
|
Max Strokes
|
cc Injection
|
Hose Size
|
Power Watts
|
|
4.0 L/Hr
|
12 Bar
|
160
|
0.42 ml
|
4 x 6 mm
|
12.2
|
|
5.0
L/Hr
|
10 Bar
|
160
|
0.52 ml
|
4 x 6 mm
|
12.2
|
|
6.0 L/Hr
|
8 Bar
|
160
|
0.63 ml
|
4 x 6 mm
|
12.2
|
|
8.0 L/Hr
|
2 Bar
|
160
|
0.83 ml
|
4 x 6 mm
|
12.2
|
|
7.0 L/Hr
|
12 Bar
|
300
|
0.38 ml
|
4
x 6 mm
|
23.9
|
|
10.0 L/Hr
|
10 Bar
|
300
|
0.55 ml
|
4 x 6 mm
|
23.9
|
|
15.0 L/Hr
|
5 Bar
|
300
|
0.83 ml
|
4 x 6 mm
|
23.9
|
|
18.0 L/Hr
|
1 Bar
|
300
|
1.00 ml
|
4
x 6 mm
|
23.9
|
|
20.0 L/Hr
|
5 Bar
|
300
|
1.11 ml
|
4 x 6 mm
|
22.2
|
|
32.0 L/Hr
|
4 Bar
|
300
|
1.78 ml
|
4 x 6 mm
|
22.2
|
|
62.0 L/Hr
|
2 Bar
|
300
|
3.44 ml
|
4
x 6 mm
|
22.2
|
|
110.0 L/Hr
|
0.1 Bar
|
300
|
6.11 ml
|
4 x 6 mm
|
22.2
|
Note : - For guidance purposes only manufacturer reserves right
to amended specifications
Pump Outputs & Specifications
Dosing pumps and instruments with online cloud platform access across multiple locations worldwide
Chemical
Dosing Pumps
Copyright: - Electronic Dosing Systems 2025
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle
Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing |
Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems
Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
Pumps With Modbus WiFi Technology
N.B. Pump available with chemical level sensor protection
N.B. Pump available with mechanical stroke length adjustment
HK Series Dosing Pumps
Digital manually adjustable dosing pump where precision meets simplicity offering
unparalleled control, performance and reliability benefiting from ease of use functionality and intelligent flow
algorithm. The easy to read display provides real-time operational feedback eliminating guesswork and detecting potential
issues, the intuitive digital interface allows a smooth transition of chemical concentration levels thus eliminating chemical
waste even in the most challenging of environments.
Available with Modbus RTU RS485 port interface for
remote management access via internal webserver with full programming authority via online server.
Intelligent Metering Algorithm
The
patented power algorithm offers a fundamental shift in chemical engineering it intelligently compensates for any environment
fluctuations adapting the power delivered to the solenoid based on the required flow rate, fluid viscosity and system pressure to
ensure the pump operates at it's optimum efficiency.
Dosing Applications
Ideal for a wide range of industries
including water treatment, chemical manufacturing, hydroponics and food and beverage production.
Often integrated with other process
equipment in multiple water treatment and chemical engineering applications.
Ideal for a wide range of industries
including water treatment, chemical manufacturing, hydroponics and food and beverage production.
Often integrated with other process
equipment in multiple water treatment and chemical engineering applications.
N.B. Pump level sensor available upon request
Chemical Dosing Pump
Definitions
Definitions
Chemical dosing pumps being used in multiple commercial and industrial sectors and described by alternative names often
used interchangeably across numerous industries to emphasize their primary function with other specific terms relating
to their type or their specialized application below are common alternative terms used to describe chemical dosing
pumps.
Dosing Pumps: The the most common and general term used often described with manual adjustment to alter the
amount and frequency chemical is precisely dispensed allowing the operator to change the flow rate manually through a potentiometer
mounted on the control Panel.
Chemical Metering Pumps: Designed to add a specific volume of chemical to a system
or another fluid stream with high accuracy and repeatability often against variable discharge pressures with the flow rate manually
adjusted either through the potentiometer or digital Keypad.
Chemical Feed Pumps: Engineered to feed aggressive chemicals
at a desired flow rate with precision and are critical for maintaining chemical balance and achieving repeatable results
insuring system integrity often dosing in on/off cycles in pH control, scale prevention, industrial cooling towers and
multiple water treatment applications.
Solenoid Dosing Pumps: Deliver consistent and precise metering performance designed
for high connectivity within digital process environments allows easy adjustment of chemical flow output
and seamless integration into automated process systems with robust chemical resistance for precise and reliable fluid handling
across various industries.
Manual Dosing Pumps: Delivers a specific amount of liquid at a controlled rate with the
output determined by the operator manually adjusting the pumps output to the desired chemical dosage maintaining a constant flow
regardless of pressure or flow rate variations.
PVDF Fittings
Supplied With Pumps
Supplied With Pumps
H Series Tank
Mounting Bracket
Mounting Bracket
