R2-R Piston Metering Pump
Mechanical plunger dosing pump for higher flow dosing applications with fixed speed motor and spring-return piston mechanism specifically designed to reduce mechanical stress aided by all moving parts permanently lubricated, multiple configurations of compatible dosing heads designed to handle aggressive chemicals in the most challenging of environments and conditions.

Technical Features

»  Designed for continuous operation over long periods delivering repeatable precision reliability and performance.
»  Variable eccentric system exploits motors power during suction-discharge phases for a smooth linear output.
»  Exceptional precision regardless of environment conditions optimising chemical efficiency  and process control.

»  Multiple configurations of chemical resistant pump heads and seals for the most aggressive chemicals
»  Higher torque motors increased piston sizes with spring-return mechanism for low gearbox stress

 »  Equipped with three-phase or single-phase motors both with IP55 protection.

 »  Wetted parts: | SS316L | PVC | PP | PVDF | PTFE | FPM | EPDM | Ceramic |
 »  Flow rate range: 400 - 1000 Ltr/Hr to 20 bar

Applications

| Water Treatment | Wastewater | Drinking Water| Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |



R1-R Piston Metering Pump
Mechanical piston metering pump range in compact aluminium casing with fixed speed motor and spring-return piston mechanism specifically designed to reduce mechanical stress aided by all moving parts permanently lubricated, multiple configurations of compatible dosing heads designed to handle aggressive chemicals in the most challenging of environments and conditions.

Technical Features

»  Designed for continuous operation over long periods delivering repeatable precision reliability and performance.
»  Variable eccentric system exploits motors power during suction-discharge phases for a smooth linear output.
»  Exceptional precision regardless of environment conditions optimising chemical efficiency  and process control.

»  Multiple configurations of chemical resistant pump heads and seals for the most aggressive chemicals
»  Higher torque motors increased piston sizes with spring-return mechanism for low gearbox stress

 »  Equipped with three-phase or single-phase motors both with IP55 protection.

 »  Wetted parts: | SS316L | PVC | PP | PVDF | PTFE | FPM | EPDM | Ceramic |
 »  Flow rate range: 1.5 - 304 Ltr/Hr to 20 bar

Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |




Mechanical Piston-Plunger
Metering Pumps









Mechanical Piston Metering Pump

Piston metering pump range with spring return piston-plunger mechanism coupled with unique fixed ratio gearbox that greatly reduces mechanical stress housed in robust epoxy painted aluminium casing offering choice of multiple combinations of piston stroke lengths motor power and chemical resistant dosing heads, achieving multiple hydraulic characteristics adaptable for a large number of applications where a lower flow rate metering pumps are best suited to produce accuracy and performance regardless of working conditions.


Pumps With Modbus WiFi Technology



Dosing pumps and instruments with online cloud platform access across multiple locations worldwide

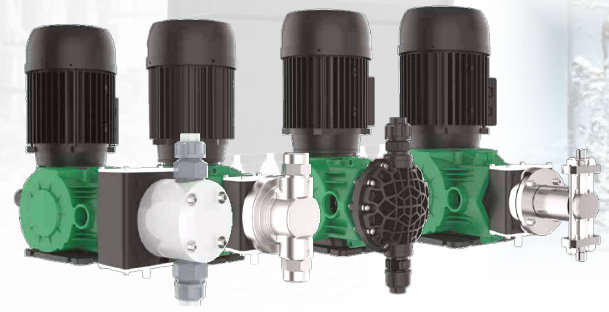

Mechanical piston dosing pumps and mechanical plunger metering pumps
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
   Copyright: - Electronic Dosing Systems 2025

Plunger Dosing Pumps

Mechanical plunger dosing pump uses positive displacement action moving the piston-plunger mechanism in a repeated back and forth motion coupled to fixed ratio gearbox which is driven by the motor in a reciprocating motion generating a suction vacuum inside the head chamber lifting the inlet valve to draw chemical into dosing head cavity the forward motion compresses against the chemical discharging the fluid through the outlet discharge valve, the flow output is dependent on two factors the piston size and stroke length where the flow rate remains linear across the pumps dosage scale retaining a consistent flow tolerance and accuracy generally unaffected by chemical viscosity and working pressure fluctuations. The key benefits offered by plunger dosing pumps is their ability dose at high pressures and high flow rates being more effective due to their low dependency on back pressure delivering repeatable precision and performance.

Piston- Metering Pumps

Mechanical piston metering pump use a fixed ratio gearbox driven by the motor in a reciprocating positive displacement action moving the spring-return piston-plunger mechanism in repeated back and forth motions creating a vacuum (suction phase) opening the inlet valve to draw fluid into dosing head chamber then in the forward motion (compression phase) open the outlet valve to discharge the fluid from the dosing head, the volume of fluid displaced depends on the size of the piston-plunger and the adjustment of the stroke length respectively being linear and throughout the dosage scale of the pump. There are a number of applications where piston metering pumps are preferred and more effective due to their low dependency on back pressure to maintain precision and performance regardless of working conditions, they can handle high viscosity chemicals operate more efficiently at high pressures including higher flow rates with repeatable precision.

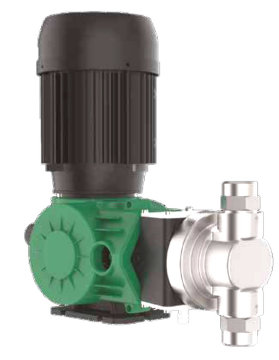

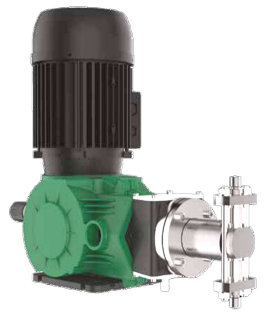

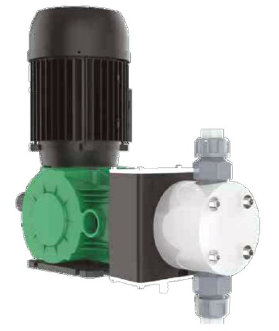

Mechanical piston dosing pump range exceptional accuracy and performance Mechanical plunger metering pump range exceptional accuracy and performance Mechanical plunger dosing pump range exceptional accuracy and performance eds_website_march_2025_latest003006.jpg eds_website_march_2025_latest003006.jpg eds_website_march_2025_latest003006.jpg
N.B. Motor sized according the pumps flow rate and working power supply
N.B. Motor sized according the pumps flow rate and working power supply
N.B. Motor sized according the pumps flow rate and working power supply
Mechanical Plunger Dosing Pump

Mechanical plunger dosing pump range housed in robust epoxy painted aluminium casing designed to operate over long periods with fixed ratio gearbox coupled with spring return plunger-piston mechanism increasing  precision and performance whilst minimising mechanical stress due in principle to the high torque motors, the flow rate can be adjusted either manually or automatically through a motorised actuator which operates off a current 4-20mA input signal often from process instruments such as pH-Chlorine-Redox controllers. Multiple combinations of compatible dosing heads resistant to most chemical agents maintaining consistent accuracy and performance even in demanding higher flow water treatment applications.

Plunger Dosing Pump

Mechanical plunger dosing pump specifically designed to operate at 100 bar pressure with equipped with special reinforced pump body with fixed ratio gearbox spring return piston mechanism coupled with high torque motor to maximise consistent repeatable precision whilst minimising mechanical stress in high pressure applications, pumps flow rate is adjustable manually or automatically through an actuator that operates off a current 4-20mA input signal often from process instruments such as pH-Chlorine-Redox controllers. Multiple combinations of compatible dosing heads resistant to most chemical agents maintaining consistent accuracy and performance even in demanding higher flow water treatment applications.

R2-HP Piston Metering Pump
Mechanical plunger dosing pump for higher flow dosing applications with fixed speed motor and spring-return piston mechanism specifically designed to reduce mechanical stress aided by all moving parts permanently lubricated, multiple configurations of compatible dosing heads designed to handle aggressive chemicals in the most challenging of environments and conditions.

Technical Features

»  Designed for continuous operation over long periods delivering repeatable precision reliability and performance.
»  Variable eccentric system exploits motors power during suction-discharge phases for a smooth linear output.
»  Exceptional precision regardless of environment conditions optimising chemical efficiency  and process control.

»  Multiple configurations of chemical resistant pump heads and seals for the most aggressive chemicals
»  Higher torque motors increased piston sizes with spring-return mechanism for low gearbox stress

 »  Equipped with three-phase or single-phase motors both with IP55 protection.

 »  Dosing Head :- Stainless Steel - Seals :- PTFE - NBR
 »  Flow rate range: 2.5 - 12 Ltr/Hr to 100 bar

Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |
