Conductivity probe for immersion in tanks and open vessels with mounting bracket
Conductiviy Controllers & Instruments


| Inline Holders | Submersible HoldersBypass-Offline Holders |
Conductivity Probe Type EC-CM1

Manufactured in robust PVC with conductive graphite electrodes to be installed into existing pipework for continuous reliable conductivity measurement.
Characterised by consistent measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Real-time measurement short response time for optimum performance control and low maintenance requirements.
»  Designed with quick release union connection for periodic inspection - cleaning and calibration of probe.
»  We recommend installed in bypass - offline manifold with isolation valves either side of probe housing.

Technical Features

» Measurement Range :- 1-20,000µS  »   Cell Constant :- K=1  »  Electrodes :- Graphite
» Temp :- 50°C  » Pressure :- 3 Bar (20°C)  » Material :- 1" PVC  » Cable :- 5 Meters

Applications
| Cooling Water systems | Wastewater | Drinking Water | Irrigation Systems | Process Water |
Immersion Conductivity Probes
Conductivity probe specifically designed for immersion into tank, open vessels and cooling tower ponds as a cost effective and practical way of monitoring conductivity levels offering real-time accurate measurement instant data feedback for quick indentification of concentrated dissolved solids effecting process efficiency and essentially the water quality in cooling towers, the versatility of immersion conductivity probes means can be utilised for a wide range of industrial water treatment applications.


Inline Conductivity Probes
Conductivity probe manufactured in PVC specifically designed for inline or bypass manifold installation into the existing pipework for continuous conductivity measurement the sample solution with union connection to allow for periodic inspection and routine servicing to maintain the probes working efficiency measurement accuracy and performance.



Conductivity Probes Inline
Conductivity probe range manufactured in robust polypropylene body and stainless steel electrodes best suited for inline and bypass manifold installations offering exceptional stable measurement feedback direct from the flow stream greatly improving process efficiency and performance, designed for continuous monitoring and analysis in a wide range of industrial water treatment applications ensuring effective removal of impurities and maintain desired conductivity parameters in the system.

| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
   Copyright: - Electronic Dosing Systems 2025
Conductivity
Probes

Conductivity Probe Measurement

Conductivity probes consists of two electrodes with an AC voltage applied across the surface area one being the transmitting electrode the other the receiving electrode inducing an electrical current when immersed in the sample solution measuring the ion concentration activity and therefore it's conductivity, the direct relationship between a solution's current flow and ion concentration is proportional offering a fast reliable and non-destructive way to access the sample solution's ion content and therefore it's conductivity value.

Conductivity measurements is typically expressed in units like Siemens per meter (S/m) or microsiemens per centimeter (µS/cm).






Conductivity Electrode Measurement

Conductivity electrodes measures a solutions ability to conduct electricity by applying an alternating voltage across the surface area of two electrodes immersed in a solution creating an electrical field between the conductivity electrode surfaces measuring the resulting current flow which is proportional to the solutions ion concentration and therefore conductivity, the higher the concentration of ions in the solution the greater the current flow therefore the higher the conductivity measurement in the solution.

Conductivity measurements is typically expressed in units like Siemens per meter (S/m) or microsiemens per centimeter (µS/cm).

Conductivity Probe Maintainance

Conductivity probes are low maintenance although they require periodic servicing crucial to restoring the probes efficiency and performance particularly when used on challendging processes where the the electrodes could become dirty or fouled compromising the probe measurement accuracy, routine cleaning with warm water or mild a detergent and brush helps remove solids that slowly accumulate on the electrodes surface that could cause entrapment of air bubbles compromising the probes measurement accuracy.


Conducivity Immersion Probe
Type EC-DIP18

Manufactured in robust PVC with conductive graphite electrodes designed for mounting inside tanks - vessels highly reliable conductivity measurement.
Characterised by consistent measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Consistentand reliable measurement offering a practical solution when monitoring conductivity on cooling towers.
»  Standard probe length 600mm (other lengths available on request)  » Mounting bracket available upon request.

»  Recommend a reasonable degree of circulation locally to probe for reliable measurement performance.

Technical Features

» Measurement Range :- 1-20,000µS  » Cell Constant :- K=1  » Electrodes :- Conductive Graphite
» Temp :- 50°C  » Pressure :- 3 Bar (20°C)  » Body Material :- ¾" PVC  »  Cable :- 5 Meters

Applications
| Cooling Water systems | Wastewater | Drinking Water | Irrigation Systems | Process Water |

Type EC-CM1

High Temperature Probes Available

eds_website_march_2025_latest014006.jpg eds_website_march_2025_latest014006.jpg
Available In Alternative Size Housing And Cable Lengths

Type EC-DIP18

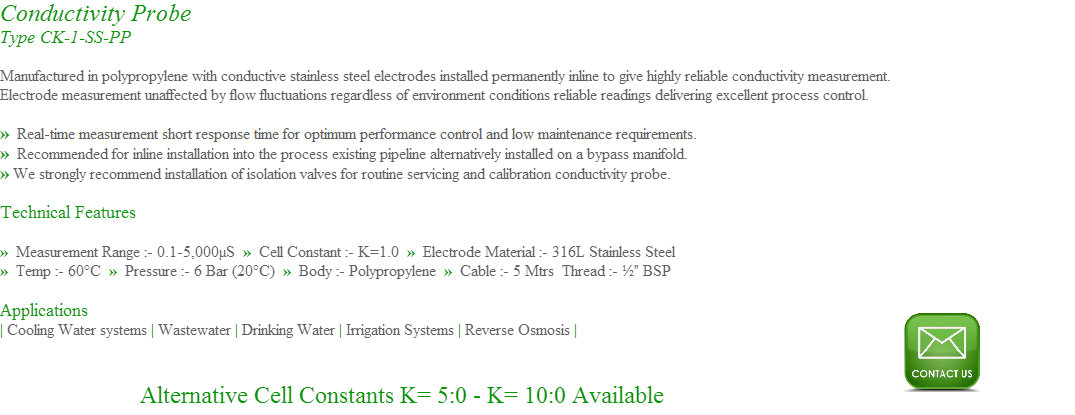

Type CK-1-SS-PP

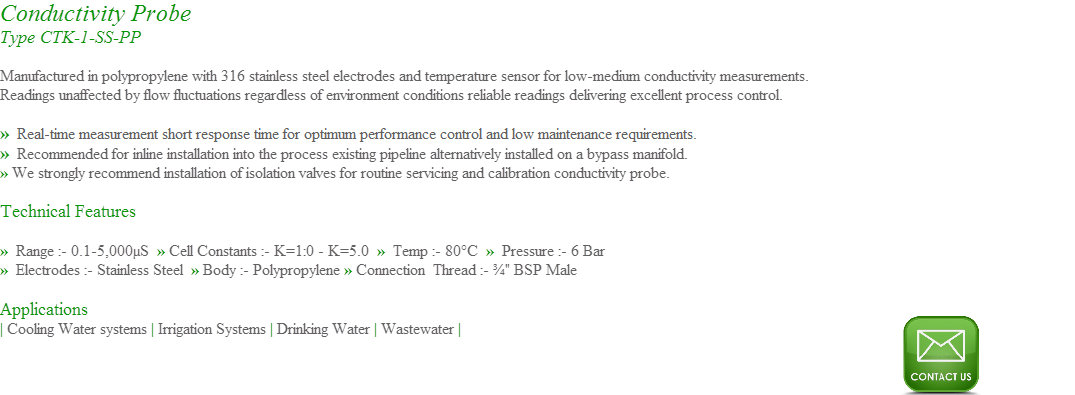

Type CTK-1-SS-PP

Probes Supplied With Removeable Connector
Isolation Valves Recommended For Probe Maintenance

Conductivity Probes Inline
Conductivity probe with built-in temperature sensor for applications with temperature variations significantly impacting conductivity measurement accuracy automatically taking into account any temperature increases occurring adjusting the conductivity measurement accordingly, manufactured in robust polypropylene body and designed for inline and bypass manifold installations offering exceptional stable measurement feedback direct from the flow stream greatly improving process efficiency and superior performance.

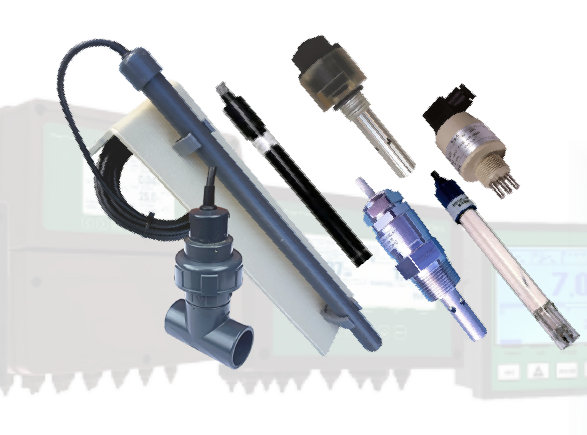

Conductivity probe for inline installation with quick release union connector Conductivity probe for inline installation exceptional measurement and accuracy Conductivity probe with temperature sensor exceptional measurement and accuracy Conductivity probes robust design exceptional measurement precision
