pH Electrode - SPH3-WW-DJ

pH electrode in glass body with sealed maintenance free electrolyte and glass membrane real-time measurement with excellent process reliability.
Characterised by consistent critical measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Real-time measurement with short response time provides efficient reliable process control long service life and consistent performance.
» Exceptional measurement precision with minimal interference caused by flow fluctuations with optimum performance process control.
»  Screened low-noise coaxial cable with very high insulation resistance and low capacitance properties for fast response times.
»  Detatchable S8 cable connection with screwed PG13.5 configuration to head of electrode with BNC type connector.

Technical Features

»  Measurement Range :- 0-14 pH  »  Temperature :- 80°C  »  Pressure :- 6 Bar
»  Membrane :- Glass »  Diaphragm :- Open Hole  » Electrolyte :- KCL Gel
»  Electrode Shaft Diameter : - Ø 12mm  »  Electrode Length :- 122mm

Applications
| Cooling Systems | Wastewater | Drinking Water | Galvanic Processes |
 pH Electrode - SPH1-WP-SJ

pH electrode in polycarbonate body sealed maintenance free electrolyte and glass membrane real-time measurement with excellent process reliability.
Characterised by consistent critical measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Real-time measurement with short response time provides efficient reliable process control long service life and consistent performance.
» Exceptional measurement precision with minimal interference caused by flow fluctuations with optimum performance process control.
»  Screened low-noise coaxial cable with very high insulation resistance and low capacitance properties for fast response times.
»  Cable permanently fixed to head of electrode providing a secure waterproof connection and quick release BNC connector.

Technical Features

»  Measurement Range :- 2-12 pH  »  Temperature :- 60°C  »  Pressure :- 6 Bar
»  Membrane :- Glass »  Diaphragm :- Pellon PTFE  » Electrolyte :- KCL Gel
»  Electrode Shaft Diameter : - Ø 12mm  »  Electrode Length :- 122mm

Applications
| Cooling Systems | Swimming Pools | Drinking Water | Irrigation Systems | Process Water | Laboratory|

Combination pH Electrodes

Combination pH electrode comprises of two main elements a glass sensing membrane electrode and reference electrode working together in a single unit measuring the hydrogen ion activity in an aqueous solution to determine it's acidity or alkalinity hence the term combination electrode, by measuring the voltage difference between the pH sensitive glass membrane and reference electrode which provides a known stable reference potential completing the electrical millivolt circuit proportional to the pH measurement value.

Dependent on the intended application electrodes are manufactured in various shaft materials: - Glass Electrodes - Polycarbonate Electrodes - Epoxy Electrodes


Single Junction pH Eelectrodes

Single junction pH electrodes are typically known to deliver fast and accurate response times due to the reference electrode's junction being made of a porous material and therefore in direct contact with the liquid sample allowing the reference electrolyte to directly interact with the solution being measured, the electrodes simple functionality design delivers repeatable measurement results and can be completely sterilised when cleaned eliminating any contamination occurring between measurement applications.

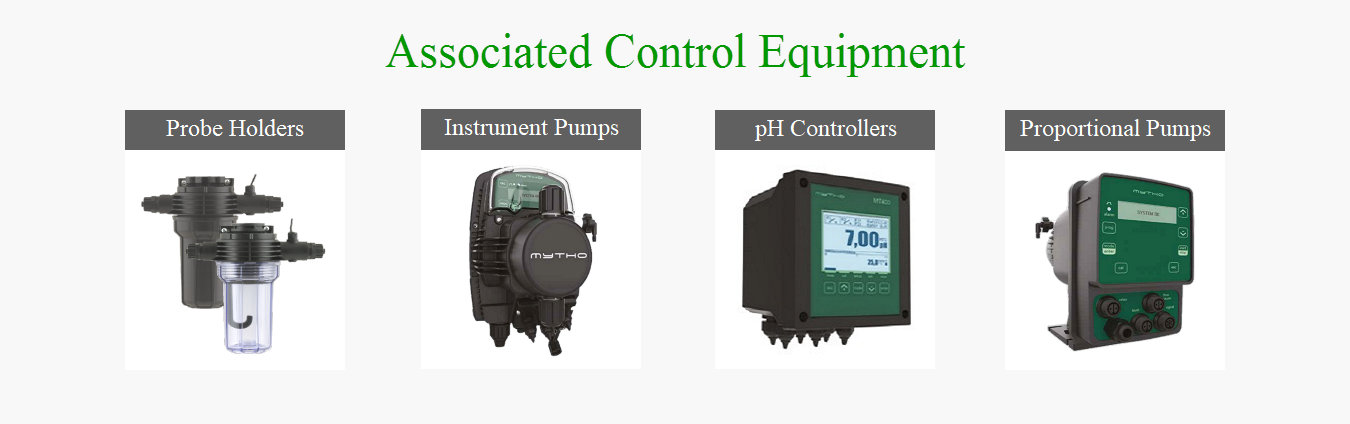

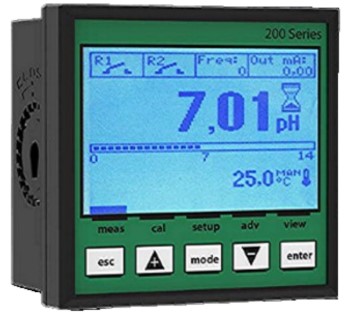

pH Controllers & Instruments


| Inline Holders | Submersible HoldersBypass-Offline Holders |
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
   Copyright: - Electronic Dosing Systems 2023
 pH Electrodes
 pH Sensors
pH combination electrodes - pH probes - pH Sensors pH combination electrodes - pH probes - pH Sensors pH combination electrodes - pH probes - pH Sensors pH combination electrodes - pH probes - pH Sensors pH combination electrodes - pH probes - pH Sensors eds_website_march_2025_latest014006.jpg
Code:- SPH1-WP-SJ

Double Junction pH Eelectrodes

Double junction pH electrodes utilizes two chambers with a barrier in between to  isolate the reference electrode being in direct contact with the liquid sample minimizing the risk of sample-induced contamination and prolonging the electrodes lifespan especially in challenging samples containing heavy metals, despite isolating the reference electrode solution the double junction design maintains electrical connection between both the sample solution and reference electrode allowing highly accurate and consistent pH measurements.


 pH Probe

The term pH probe is often referred to as a pH electrode however probes are generally designed as a complete device often incorporating additional components such as a temperature sensor and housing effectively the entire assembly to determine the acidity or alkalinity of the sample solution.


 pH Sensor

The phrase pH senor refers to either an electrode, probe or device used to determine the acidity or alkalinity of a sample solution for pH measurement.

Single Junction pH Electrodes
pH Electrode Extension Leads Available
 pH Electrode - SPH2-WP-SJ

pH electrode in epoxy body with sealed maintenance free electrolyte and glass membrane real-time measurement with excellent process reliability.
Characterised by consistent critical measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Real-time measurement with short response time provides efficient reliable process control long service life and consistent performance.
» Exceptional measurement precision with minimal interference caused by flow fluctuations with optimum performance process control.
»  Screened low-noise coaxial cable with very high insulation resistance and low capacitance properties for fast response times.
»  Detatchable S8 cable connection with screwed PG13.5 configuration to head of electrode with BNC type connector.

Technical Features

»  Measurement Range :- 2-12 pH  »  Temperature :- 60°C  »  Pressure :- 6 Bar
»  Membrane :- Glass »  Diaphragm :- Pellon PTFE  » Electrolyte :- KCL Gel
»  Electrode Shaft Diameter : - Ø 12mm  »  Electrode Length :- 122mm

Applications
| Cooling Systems | Swimming Pools | Drinking Water | Irrigation Systems | Process Water | Laboratory|
Code:- SPH2-WP-SJ
pH Electrode Extension Leads Available
Double Junction pH Electrodes
Code:- SPH3-WW-DJ
pH Electrode Extension Leads Available

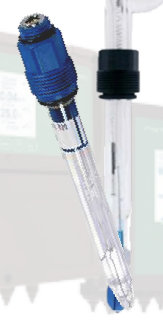

 pH Electrode - SPH4-HT-DJ

pH electrode with reinforced glass body triple-ceramic diaphragm for high temperature challenging processes exceptional measurement performance.
Characterised by consistent critical measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Real-time measurement with short response time provides efficient reliable process control long service life and consistent performance.
» Exceptional measurement precision with minimal interference caused by flow fluctuations with optimum performance process control.
»  Screened low-noise coaxial cable with very high insulation resistance and low capacitance properties for fast response times.
»  Detatchable S8 cable connection with screwed PG13.5 configuration to head of electrode with BNC type connector.

Technical Features

»  Measurement Range :- 0-14 pH  »  Temperature :- 130°C (6 Bar)  »  Operating Pressure :- 16  Bar ( 25°C)
»  Membrane :- Glass »  Diaphragm :- Triple Ceramic Diaphragm  » Electrolyte :- Blue 3M KCL Pharma
»  Electrode Shaft Diameter : - Ø 12mm »  Electrode Length :- 122mm

Applications
| Ammonia | Chrome Plating | Reverse Osmosis | Galvanic Processes |Bisulfite Applications |
Code:- SPH4-HT-DJ
pH Electrode Extension Leads Available
 pH Electrode - SPH4-HF-DJ
 (Resistant to Fluorides)

pH electrode with reinforced glass body resistant to fluorides for high temperature and challenging processes exceptional measurement performance.
Characterised by consistent critical measurement unaffected by flow fluctuations to maintain reliable readings delivering excellent process control.

»  Real-time measurement with short response time provides efficient reliable process control long service life and consistent performance.
»  Exceptional measurement precision with minimal interference caused by flow fluctuations with optimum performance process control.
»  Screened low-noise coaxial cable with very high insulation resistance and low capacitance properties for fast response times.
»  Detatchable S8 cable connection with screwed PG13.5 configuration to head of electrode with BNC type connector.

Technical Features

»  Measurement Range :- 0-14 pH  »  Temperature :- 100°C  »  Operating Pressure :- 16  Bar
»  Membrane :- Glass »  Diaphragm :- Two Open Hole Diaphragms  » Electrolyte :- Polisolve
»  Electrode Shaft Diameter : - Ø 12mm  »  Electrode Length :- 122mm

Applications
| Fihing Farming | Well Water | Galvanic Processes | Drinking Water | Wastewater |
Code:- SPH4-HF-DJ
pH Electrode Extension Leads Available
eds_website_march_2025_latest014006.jpg Single junction pH electrode for general water treatment applications Single junction pH electrode for general water treatment applications Double junction pH electrode suitable for challenging water treatment processes pH electrode with reinforced glass body for high temperature 130°C and pressure up to 16 bar for challendging applications
