Redox
Controllers

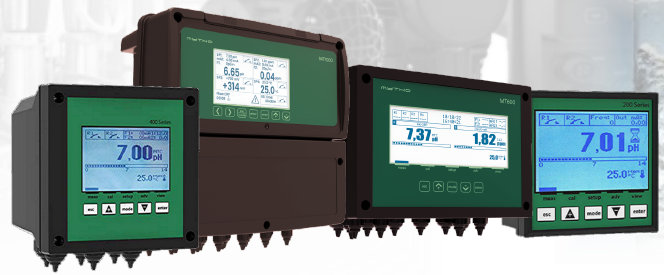

Redox Controllers
A microprocessor digital redox controller constantly monitors and maintains redox
levels within specific parameters and boundaries by analysing the change in oxidation-reduction potential measured by the redox
electrode in an aqueous solution and displayed in millivolts by the controller, different types of controllers offer
various degrees of specifications and programming functionality's to suit the specific application either as
a stand alone redox dosing system or integrated other control equipment and process systems. Due to the significant role redox measurement plays
in various industries controllers operators can connect to a local webserver network for remote access to monitor
the system in real-time with full programming authority.
Redox Measurement
The measurement redox potential also know as oxidation reduction potential is determined
in a aqueous solution the tendency of a chemical species to acquire or lose electrons to an electrode and thereby be reduced or oxidised
respectively using a platinum tip redox electrode with the value being presented and displayed in millivolts (mV),
the term Redox is derived from Reduction Oxidation and also referred to as ORP (Oxidation Reduction Potential) with a sensing electrode
acting as a platform for electron transfer to and from the reference half cell typically made of platinum.
The importance
of redox measurement and the critical role it has ensuring levels remains within process-specific parameters across
a vast range of process applications cannot be underestimated providing an essential element in determining
the process efficiency with regulations and guidelines adhered to accordingly
Redox Instruments
A redox instrument analyses the change in oxidation-reduction potential measured by
a redox electrode in an aqueous solution measured and displayed in millivolts by instrument ensuring the process levels remain
within specific parameters critical in a number of commercial and industrial applications, advancement in
electrode technology has greatly expanded applications where redox measurement has increasingly been used as
a more cost effective alternative to other forms of measurement and control. Whilst redox instruments are often used
as a stand alone system they are more commonly used as a panel mounted instrument being used in control
panels for wastewater and effluent treatment process applications.
Redox Controllers
High precision microprocessor redox controllers in IP65 surface mounting housing operating
as either a stand alone system or can be easily integrated with other process equipment required for more complex
control systems applications such as wastewater, water treatment and effluent treatment applications, equipped with large
self explanatory graphic display for real-time measurement including messages associated with temperature, alarms for
flow and electrode error including output relays controlling the chemical dosing pumps.
MT200-RX Controller
Redox (ORP) controller developed for high precision process control applications characterised
by isolated measurement graphic display with non-intrusive programming software system and real-time measurement for reliable
process control, visual inspection of the display provides additional information for temperature, flow, active outputs
and alarm status with parameters configured for process-specific tasks.
Technical Details
» Configurable Relay
Outputs :- On/Off Mode - PWM Mode - Timed Activation
» Alarm Messages :- Probe Failure - Temperature
- Flow - Set-Point Time-Out
» Redox Electrode working efficiency address utilising the washing
cycle function
» Inputs/Outpus :- Flow - Temp Sensor - 1 x 4÷20mA Output - Alarms
» Temperature Measurement
:- PT100 Sensor - PT1000 Sensor
» Stabilised Universal 100÷240v Power Supply
» Dimensions :- 144 x
144 x 122mm
Applications
| Water Treatment | Wastewater | Drinking Water | Swimming Pools | PotableWastewater | Food & Beverage | Agricultural Systems |
QR Codes
Controller Configurations
Advanced Settings
Copyright: - Electronic Dosing Systems 2024
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle
Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing |
Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Redox Controllers
( PID Software )
Sophisticated professional high-precision redox (ORP) instrument with
PID software technology continuously adapts live redox readings against the desired set-point parameters
to a programmed algorithm eliminating any chemical overshoot delivering consistent results and increasing the process efficiency,
the redox electrode protected against electrical interference by reinforced galvanic isolation eliminating measurement variations
critical for many high precision water treatment processes in the commercial and industrial sectors.
N.B. Controller can be set to operate in pH mode
MT400-RX (PID) Controller
Sophisticated redox (ORP) controller in IP65 wall mounted housing for high
precision control processes with PID software technology and reinforced galvanic isolation that shields the redox
electrode against any electrical interference, smart graphic display changes colour to live working conditions with
non-intrusive programming PID algorithm software for increased measurement precision and control.
Technical Details
» Configurable Relay Outputs :- PID algorithm according to detected parameters
» Smart Graphic Display :- Changes
colour to working status including alarms
» Redox Electrode working efficiency address utilising
the washing cycle function
» Inputs/Outpus :- Flow - Temp Sensor - 1 x 4÷20mA Output - Alarms
» Temperature
Measurement :- PT100 Sensor - PT1000 Sensor
» Remote monitoring access with full programming authority.
» Stabilised
Universal 100÷240v Power Supply
» Dimensions :- 144 x 144 x 122mm
Applications
| Water Treatment | Wastewater | Drinking
Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems |
N.B. Controller can be set to operate in pH mode
Panel Mounted Redox Instruments
State Of The Art PID Algorithm Software Technology
Redox Instruments
High precision redox (ORP) instrument in panel mounted housing equipped with
innovative graphic display simultaneous real-time redox and temperature measurements benefiting from standard
and advanced menu's allowing the user to determine critical process-specific parameters for optimal management of the system, the
display provides additional information for active pump outputs, redox electrode non-functioning, insufficient flow
conditions with additional outputs available for pairing with other equipment and remote devices.
MT200-RX Panel Instrument
Redox (ORP) Instrument developed for high precision process control applications characterised
by isolated measurement graphic display with non-intrusive programming software system and real-time measurement for reliable
process control, visual inspection of the display provides additional information for temperature, flow, active outputs
and alarm status with pparameters configured for process-specific tasks.
Technical Details
» Configurable Relay
Outputs :- On/Off Mode - PWM Mode - Timed Activation
» Alarm Messages :- Probe Failure - Temperature
- Flow - Set-Point Time-Out
» Redox Electrode working efficiency address utilising the washing
cycle function
» Inputs/Outpus :- Flow - Temp Sensor - 1 x 4÷20mA Output - Alarms
» Temperature Measurement
:- PT100 Sensor - PT1000 Sensor
» Stabilised Universal 100÷240v Power Supply
» Dimensions :- 96
x 96 mm
Applications
| Water Treatment | Wastewater | Drinking Water | Swimming Pools | PotableWastewater | Food & Beverage | Agricultural Systems |
N.B. Controller can be set to operate in pH mode
Redox Instruments
( PID Software )
Sophisticated professional high-precision redox (ORP) instrument with
PID software technology continuously adapts live redox readings against the desired set-point parameters
to a programmed algorithm eliminating chemical overshoot delivering consistent results and increasing the process efficiency,
the redox electrode is protected against electrical interference by reinforced galvanic isolation eliminating measurement variations
critical for many high precision water treatment processes in the commercial and industrial sectors.
MT400-RX (PID) Panel Instrument
Sophisticated redox (ORP) instrument in wall mounted housing developed for
high precision control processes with PID software technology and reinforced galvanic isolation to protect the redox electrode against electrical
interference, smart graphic display changes colour according to working conditions with non-intrusive programming PID algorithm software
for increased measurement precision and control.
Technical Details
» Configurable Relay Outputs :- PID
algorithm according to detected parameters
» Smart Graphic Display :- Changes colour to working status including
alarms
» Redox Electrode working efficiency address utilising the washing cycle function
» Inputs/Outpus :- Flow - Temp Sensor - 1 x 4÷20mA Output - Alarms
» Temperature Measurement :- PT100 Sensor - PT1000
Sensor
» Remote monitoring access with full programming authority.
» Stabilised Universal 100÷240v
Power Supply
» Dimensions :- 144 x 144 x 122mm
Applications
| Water Treatment | Wastewater | Drinking
Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems |
N.B. Controller can be set to operate in pH mode
QR Codes
Controller Configurations
Advanced Settings
