NX Diaphragm Dosing Pumps
Manufactured from materials that deliver superior robustness and chemical compatibility designed operate continuously over long periods in high suction head environments whilst retaining accuracy and performance, compact in design components benefit from permanent lubrication preventing overheating can handle flow rates up to 530 l/h with pressures up to 12 bar pressure.

Technical Details

»  Designed to operate continuously over long periods delivering repeatable precision reliability and performance.
»  Variable eccentric system exploits motors power during suction-discharge phases for a smooth linear output.
»  Exceptional precision regardless of environment conditions optimising chemical efficiency and process control.

»  Chemical compatible dosing heads and seals for even for the most aggressive chemicals.
»  Diaphragm (PTFE) is directly linked to the mechanism’s moving parts.

»  Chemical Seals :- PTFE, FFKM, EPDM, FKM-B - Ceramic Balls
»  Dosing Heads :- PVDF - PVC - Stainless Steel 316L
»  Flow Outputs :- 9÷530 Litres

Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | PotableWastewater | Food & Beverage | Agricultural Systems  |
D1-HF Diaphragm Dosing Pumps
(Vacuum Assisted System®)
Manufactured specifically to handle higher flow rates due to the combined patented AVS and spring-return mechanism coupled with the stroke rate the diaphragm operates maintaining precision and performance, with compatible dosing heads suitable for most chemical agents delivering reliable repeatable performances across a wide range of process applications.

Technical Details

»  Patented (AVS) assisted vacuum system coupled with a spring-return mechanism for improved performance
»  Diaphragm (stroke-min) frequency increased producing higher flow rates without compromising it's lifespan
»  Pumps can be configured with two different stroke rates (156-232 stroke-min) with a three-phase motor
»  Exceptional precision regardless of environment conditions optimising chemical efficiency  and process control.

»  Chemical compatible dosing heads and seals for even for the most aggressive chemicals.
»  Diaphragm (PTFE) is directly linked to the mechanism’s moving parts.


»  Dosing Heads :- SS316L - PVC - PP - PVDF - PTFE
»  Chemical Seals :- FPM - EPDM - Ceramic
 »  Flow Outputs:- 450 - 1,200 Litres

Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |



Mechanical Diaphragm Metering Pump





Diaphragms Dosing Pumps

Motor driven diaphragm dosing pumps uses a reciprocating motion driven by the rotation of the motor speed causing the diaphragm mechanism  to complete the suction and discharge process inside the dosing head ensuring the amount of chemical displaced is both linear and repeatable, adjustment of the stroke length alters the movement of the diaphragm therefore increasing or decreasing volume of chemical displaced with each stroke cycle respectively with the relationship between the stroke length and chemical volume dosed linear. Manufactured using premium materials that deliver superior robustness excellent chemical compatibility coupled with extreme accurate metering performance.

Mechanical diaphragm dosing pump range exceptional reliability and performance Mechanical diaphragm metering pump range exceptional reliability and performance

Mechanical Metering Pump

Motor driven diaphragm metering pump comprises of two principle model ranges the  NX series and NY series designed for continuous operation but sharing similar characteristics and functions developed by highly experienced and skilled engineers focused  in bringing to the market high performance and robust diaphragm metering pumps, capable of operating in all types of environments including fluctuating flow, pressures including adverse temperatures and ATEX Zone 2 hazardous environments.

The NX Series diaphragm pumps designed for accuracy and reliability can be used effectively in environments where the required flow rates are lower but required to operate at higher pressures by exploiting the motor power and variable eccentric system capable of operating continuously over long periods.

The NY Series are designed for the most demanding of applications and environments for applications requiring a higher flow rate metering pump but at lower working pressures whilst retaining linear dosing accuracy combined with excellent chemical compatibility working for long of continuous operation.

Pump Flow Rates & Specifications



Flow Rate
 Pressure
Max Strokes
Connections
 Stroke Length
3 Phase Motor
9.0 L/Hr
12 Bar
116
1/4” BSP
2 mm
0.25 kWh - 4 pole
 53.0 L/Hr
10 Bar
78

3/8" BSP

4 mm
0.25 kWh - 4 pole
170 L/Hr
7 Bar
78
3/4" BSP
6.4 mm
0.25 kWh - 4 pole
340 L/Hr
5 Bar
156
3/4"BSP
6.4 mm
0.25 kWh - 4 pole
530 L/Hr
12 Bar
156
1" BSP
7.4 mm
0.25 kWh - 4 pole
Note : - Guidance purposes only manufacturer reserves right to amended specifications
Flow Rate
 Pressure
Max Strokes
Connections
 Stroke Length
3 Phase Motor
80 L/Hr
10 Bar
43
3/4" BSP
7 mm
0.55 kWh - 4 pole
 250 L/Hr
10 Bar
131

3/4" BSP

7 mm
0.55 kWh - 4 pole
450 L/Hr
10 Bar
175
3/4" BSP
8 mm
0.55 kWh - 4 pole
600 L/Hr
7 Bar
175
1" BSP
8 mm
0.55 kWh - 4 pole
1,000 L/Hr
4 Bar
171
1" BSP
9 mm
0.55 kWh - 4 pole
1,600 L/Hr
4 Bar
131
1½" BSP
15 mm
0.75 kWh - 4 pole
2,300 L/Hr
4 Bar
175
1½" BSP
15 mm
1.1 kWh - 4 pole
Note : - Guidance purposes only manufacturer reserves right to amended specifications

NY Series Flow Rates & Specifications

| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
   Copyright: - Electronic Dosing Systems 2025

Diaphragm Metering Pumps

Mechanical diaphragm dosing pump is designed using a fixed ratio gearbox driven by the motor speed rotation in a reciprocating action against the spring-return mechanism attached to the pump diaphragm to ensuring the amount of fluid displaced is both linear and a repeatable manner, manual adjustment of the diaphragms stroke length alters the volume of chemical displaced with each stroke cycle respectively with the relationship between stroke length and chemical volume delivered linear essential when used critical process applications. The significant benefit of a diaphragm metering pump is only the PTFE diaphragm resistant to most chemicals and pump head itself is in contact with the chemical.




Diaphragm Dosing Pump

Manufactured to deliver superior precision, accuracy and reliability in a compact robust housing with chemical resistant dosing heads for even the most aggressive chemicals and designed to operate continuously due to the variable eccentric system enables the pump to exploit the motors power during both suction and discharge phases producing a smooth repeatable linear output respectively, delivering eexceptional performance and precision even under fluctuating pressure conditions and environments across all flow rates. The robust design and hard wearing moving parts coupled with the wet-end parts ensures the pump will not leak during operation dramatically increasing the diaphragm pumps service life.

N.B. Motor sized according the pumps flow rate and working power supply
Diaphragm Metering Pump

Designed for applications that require higher flow rate metering pumps whilst retaining superior precision, reliability and performance with compatible dosing heads for even the most aggressive chemicals and designed to operate continuously due to the variable eccentric system enables the pump to exploit the motors power during suction and discharge phases producing a smooth repeatable linear output respectively, delivering eexceptional performance and precision even under fluctuating pressure conditions and environments across all flow rates. The robust design and hard wearing moving parts coupled with the wet-end parts ensures the pump will not leak during operation dramatically increases the diaphragm pumps service life.

NY Diaphragm Metering Pumps
Designed specifically to handle higher flow rates from a choice of seven pump models designed to operate continuously in demanding environments across a wide range of water treatment applications, retaining a high degree of precision and reliability due in principle to the permanent lubrication of moving parts within the gearbox preventing overheating and maintaining performance.

Technical Details

»  Designed to operate continuously over long periods delivering repeatable precision reliability and performance.
»  Variable eccentric system exploits motors power during suction-discharge phases for a smooth linear output.
»  Exceptional precision regardless of environment conditions optimising chemical efficiency  and process control.

»  Chemical compatible dosing heads and seals for even for the most aggressive chemicals.
»  Diaphragm (PTFE) is directly linked to the mechanism’s moving parts.

»  Chemical Seals :- PTFE, FFKM, EPDM, FKM-B - Ceramic Balls
» Dosing Heads :- PVDF - PVC - Stainless Steel 316L
»  Flow Outputs :- 80÷2300 Litres

Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |

N.B. Motor sized according the pumps flow rate and working power supply

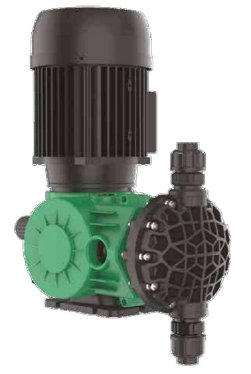

Motor-driven diaphragm metering pump range exceptional reliability and performance eds_website_march_2025_latest003006.jpg
Diaphragm Dosing Pump

Diaphragm dosing pump incorporating the patented (AVS) vacuum assisted system a technical solution to overcome the typical functional limitations normally associated with a spring-return mechanism. the increase in the flow rate performance is down to the increased number of strokes per minute with mechanical stress levels reduced and without compromising the integrity of the diaphragm, producing higher flow rates whilst retaining exceptional precision and accuracy even when operating under demanding working conditions.
 Diaphragm Metering Pumps
Incorporating (AVS) Vacuum Assisted System®
N.B. Three phase motor supplied to maintain performance and metering precision
