Conductivity Electrode
Drinking Water - Irrigation - Wastewater

Manufactured in epoxy body with integrated temperature compensation sensor exceptional real-time measurement.accuracy and performance
Characterised by consistent conductivity measurement unaffected by temperature and flow fluctuations delivers excellent process control.

»  Real-time measurement short response time for optimum performance control and low maintenance requirements.
»  Conductivity electrode in epoxy body with integrated temperature sensor and conductive graphite electrodes.
»  We recommend installed in bypass - offline manifold with isolation valves either side of probe housing.
»  Conductivity measurement range medium-high for a wide range of process-control applications

Technical Features

» Measurement Range :- 1-20,000µS  »   Cell Constant :- K=1  »  Electrodes :- Graphite  » Temp Sensor :- PT100
» Temp :- 70°C » Pressure :- 7.5 Bar » Material :- Epoxy»  Probe Diameter :- 12mm » Cable :- 6 Meters

Applications
| Cooling Water | Wastewater | Drinking Water | Irrigation Systems | Water Treatment |

Conductivity
Electrodes

Conductiviy Controllers & Instruments


| Inline Holders | Submersible HoldersBypass-Offline Holders |
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
   Copyright: - Electronic Dosing Systems 2025

Conductivity Electrode Measurement

Conductivity electrodes consists of two electrodes with an AC voltage applied across the surface area one being the transmitting electrode the other the receiving electrode inducing an electrical current when immersed in the sample solution measuring the ion concentration activity and therefore it's conductivity, the direct relationship between a solution's current flow and ion concentration is proportional offering a fast reliable and non-destructive way to access the sample solution's ion content and therefore it's conductivity value.

Conductivity measurements is typically expressed in units like Siemens per meter (S/m) or microsiemens per centimeter (µS/cm).






Conductivity Electrode Measurement

Conductivity electrodes measures the electrolytic conductivity charge between two  electrodes immersed  a solution by applying an alternating voltage across the electrodes surface area of two electrodes generating an electrical field measuring the resulting current flow which is a key indicator of water quality as it reflects the dissolved ions (impurities) in the measured solution, therefore a higher concentration of ions in the solution the greater the current flow across the electrodes indicating a higher conductivity value measurement.

Conductivity measurements is typically expressed in units like Siemens per meter (S/m) or microsiemens per centimeter (µS/cm).

Conductivity Electrode Maintainance

Conductivity electrodes are generally low maintenance although they require periodic servicing crucial to restoring the probes efficiency and performance particularly when used on challendging processes where the the electrodes could become dirty or fouled compromising the probe measurement accuracy, routine cleaning with warm water or mild a detergent and brush helps remove solids that slowly accumulate on the electrodes surface that could cause entrapment of air bubbles compromising the probes measurement accuracy.


Inline Conductivity Electrode
Conductivity probe with graphite electrodes and temperature sensor manufactured in epoxy chosen for it's robustness and increased resistance to harsh process-control environments making them suitable for field and various industrial water treatment applications, for processes with fluctuating temperatures to maintain stable conductivity readings temperature sensor compensates and corrects to a standard reference temperature usually 25°C to ensure the reliability and accuracy of conductivity measurement.



Type CTK-1-GR-EP

Conductivity Electrode Supplied With Fixed Cable

Conductivity Electrode
Conductivity electrode in glass body with highly sensitive platinum electrodes suitable for medium-high conductivity measurement for reverse osmosis and fish farming applications offering exceptional measurement feedback direct from the flow stream greatly improving process efficiency and performance, helps with early detection of any potential issues with the RO membrane and water quality including salinity levels crucial for establishing a healthy environment for the survival of fish and other aquatic organisms.

Conductivity Electrode
Reverse Osmosis - Fish Farming

Manufactured in reinforced glass body with highly sensitive platinum electrodes with exceptional highly reliable real-time conductivity measurement.
Electrode measurement accuracy unaffected by flow fluctuations regardless of environment conditions delivering repeatable measurements

»  Real-time measurement short response time for optimum performance control and low maintenance requirements.
»  Recommended for inline installation into the process existing pipeline alternatively installed on a bypass manifold.
»  We strongly recommend installation of isolation valves for routine servicing and calibration conductivity probe.
»  Conductivity measurement range medium-high suitable for reverse osmosis and fish farming applications

Technical Features

»  Range :- 1-20,000µS  » Constant :- K=1.0  »  Electrodes:- Platinum » Temp Sensor :- PT100
»  Temperature :- 0 - 130°C  »  Pressure :- 6 Bar  »  EBody :- Glass  »  Cable Length :- 6 Mtrs

Applications
| Reverse Osmosis | Fish Farming |

Type CK-1-PT-GL

Conductivity Electrode Supplied With Fixed Cable
eds_website_march_2025_latest014006.jpg Conductivity electrode in epoxy body for drinking water - wastewater  - irrigation and cooling tower applications Conductivity electrode in glass body for reverse osmosis and fish farming applications
Conductivity Electrode
Wastewater - Salt Water

Manufactured in epoxy body with integrated temperature sensor with highly sensitive platinum electrodes for exceptional measurements.
Provides accurate and responsive conductivity measurements unaffected by any temperature fluctuations and working environment.

»  Real-time measurement short response time for optimum performance control and low maintenance requirements.
»  Recommended for inline installation into the process existing pipeline alternatively installed on a bypass manifold.
» We strongly recommend installation of isolation valves for routine servicing and calibration conductivity probe.
»  Conductivity measurement for high dissolved solids suitable for wastewater and salt water applications

Technical Features

»  Range :- 100-200,000µS  » Constant :- K= 0:1 » Temp :- 70°C »  Pressure :- 7.5 Bar »  Temp Sensor :- PT100
»  Probe Diameter :- 12mm  »  Electrode :- Platinum  »  Body :- Epoxy »  Cable Length :- 6 Mtrs

Applications
| Wastewater | Salt Water |

Type CTK-01-PT-EX

Conductivity Electrode Supplied With Fixed Cable

Conductivity Electrode
Robust conductivity electrode in epoxy body with integrated temperature sensor and highly sensitive platinum electrodes specifically designed for measurement of sample solutions with high conductivity levels such as wastewater and salt water process-control applications, the platinum electrodes are made of superior material offering increased resistance against corrosion and oxidation eliminating any reaction or contamination with the measured solution retaining exceptional measurement feedback accuracy and performance.

Conductivity electrode in epoxy body for wastewater and salt water applications
Conductivity Electrode
Wastewater - Irrigation - Drinking Water

Manufactured in epoxy body with integrated temperature sensor with highly sensitive platinum electrodes for exceptional measurements.
Provides accurate and responsive conductivity measurements unaffected by any temperature fluctuations and working environment.

»  Real-time measurement short response time for optimum performance control and low maintenance requirements.
»  Recommended for inline installation into the process existing pipeline alternatively installed on a bypass manifold.
» We strongly recommend installation of isolation valves for routine servicing and calibration conductivity probe.
»  Conductivity measurement for high dissolved solids suitable for wastewater and salt water applications

Technical Features

»  Range :- 0.1-500µS » Constant :- K= 10 » Temp :- 70°C »  Pressure :- 7.5 Bar » Temp Sensor :- PT100
»  Probe Diameter :- 12mm »  Electrode :- Platinum  » Body :- Epoxy » Cable Length :- 6 Mtrs

Applications
| Cooling Water | Irrigation Systems | Irrigation Systems | Wastewater |

Type CTK-10-PT-EX

Conductivity Electrode Supplied With Fixed Cable

Conductivity Electrode
Robust conductivity electrode in epoxy body with integrated temperature sensor and highly sensitive platinum electrodes specifically designed for measurement of sample solutions with high conductivity levels such as wastewater and salt water process-control applications, the platinum electrodes are made of superior material offering increased resistance against corrosion and oxidation eliminating any reaction or contamination with the measured solution retaining exceptional measurement feedback accuracy and performance.

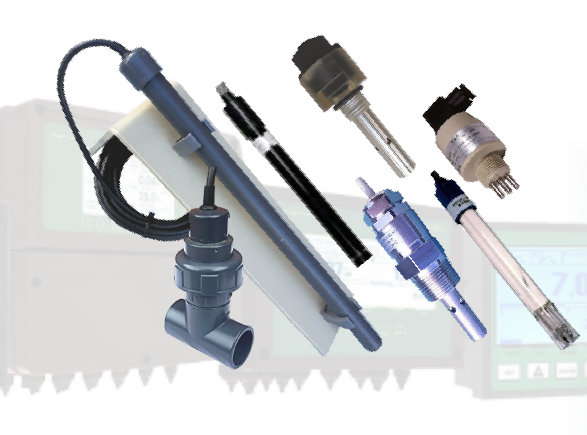

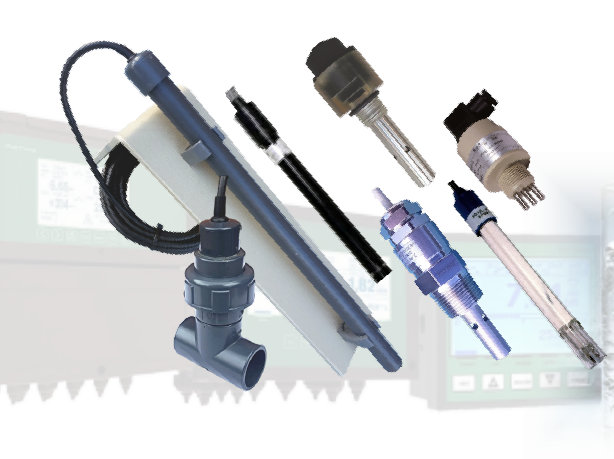

Conductivity electrode with platinum electrodes specifically designed for very low conductivity measurement applications Conductivity probes robust design exceptional measurement precision
