YR Metering Pump
Microprocessor metering pump in surface mounted housing with sophisticated pH and redox controllers. Powerful multi-parameter software program designed to deliver consistent and precise performance regardless of environment conditions, configurable set-point includes start delay, hysteresis, proportional dosing band and max flow parameters with signal inputs for level, flow and temperature sensors including remote start-stop input signal with relay alarm output and analog 4÷20mA current output available to interface with BMSand process control applications.

Technical Details

»   Manufactured in robust surface mounted IP65 rated housing resistant to most aggressive chemical agents
»   PVDF dosing head equipped with manual priming valve - Automatic degassing dosing head available
»   Installation Kit - PVDF Injection Valve and Footvalve - PVC Suction Hose - PE Discharge Hose
»  Operating Modes - pH Dosing System - Redox (ORP) Dosing System - Constant Dosing Pump
»   Programming Parameters - Start Delay - Hysteresis - Proportional Band - Maximum Flow Rate
»   Programmable Signal Inputs - Level Sensor - Flow Sensor - PT100 Temperature Sensor
»   Statistics - Stroke Total - Chemical Dosed - Starts - Resetable Counter Function


»   Patented 100÷240v algorithm reacts to live conditions to maintain performance
»  Remote access through websever with full programming authority
»   Dosing pump model output range :- 0.4÷110 l/Hr


Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |

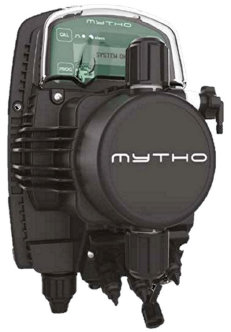

HR Dosing Pump
Microprocessor metering pump in wall mounted housing with sophisticated pH and redox controllers. Powerful multi-parameter software program designed to deliver consistent and precise performance regardless of environment conditions, configurable set-point includes start delay, hysteresis, proportional dosing band and max flow parameters with signal inputs for level, flow and temperature sensors including remote start-stop input signal with relay alarm output and analog 4÷20mA current output available to interface with BMSand process control applications.

Technical Details

»   Manufactured in robust wall mounted IP65 rated housing resistant to most aggressive chemical agents
»   PVDF dosing head equipped with manual priming valve - Automatic degassing dosing head available
»   Installation Kit - PVDF Injection Valve and Footvalve - PVC Suction Hose - PE Discharge Hose
»  Operating Modes - pH Dosing System - Redox (ORP) Dosing System - Constant Dosing Pump
»   Programming Parameters - Start Delay - Hysteresis - Proportional Band - Maximum Flow Rate
»   Programmable Signal Inputs - Level Sensor - Flow Sensor - PT100 Temperature Sensor
»   Statistics - Stroke Total - Chemical Dosed - Starts - Resetable Counter Function


»   Patented 100÷240v algorithm reacts to live conditions to maintain performance
»  Remote access through websever with full programming authority
»   Dosing pump model output range :- 0.4÷110 l/Hr


Applications

| Water Treatment | Wastewater | Drinking Water | Swimming Pools | Potable Wastewater | Food & Beverage | Agricultural Systems  |

Pump Outputs & Specifications



Flow Rate
 Pressure
Max Strokes
cc Injection
 Hose Size
Power Watts
4.0 L/Hr
12 Bar
160
0.42 ml
4 x 6 mm
12.2
 5.0 L/Hr
10 Bar
160
0.52 ml
4 x 6 mm
12.2
6.0 L/Hr
8 Bar
160
0.63 ml
4 x 6 mm
12.2
8.0 L/Hr
2 Bar
160
0.83 ml
4 x 6 mm
12.2
7.0 L/Hr
12 Bar
300
0.38 ml
4 x 6 mm
23.9
10.0 L/Hr
10 Bar
300
0.55 ml
4 x 6 mm
23.9
15.0 L/Hr
5 Bar
300
0.83 ml
4 x 6 mm
23.9
18.0 L/Hr
1 Bar
300
1.00 ml
4 x 6 mm
23.9
20.0 L/Hr
5 Bar
300
1.11 ml
4 x 6 mm
22.2
32.0 L/Hr
4 Bar
300
1.78 ml
4 x 6 mm
22.2
62.0 L/Hr
2 Bar
300
3.44 ml
4 x 6 mm
22.2
110.0 L/Hr
0.1 Bar
300
6.11 ml
4 x 6 mm
22.2
Note : - Guidance purposes only manufacturer reserves right to amended specifications

pH Instrument Pump

Chemical dosing pump with powerful digital interface pH controller large self explanatory graphic display designed specifically for applications where space is at a premium without compromising performance and reliability whilst exploiting reduced installation time and on-going monitoring as a compact stand alone dosing system, the patented algorithm responds to live working conditions providing enough power to active the pumps solenoid which improves the pumps efficiency reduces energy consumption whilst maintaining the precise chemical balance in the system in any condition.

Often used to dose highly aggressive, volatile and toxic chemicals compatible wet-end kits resistant to the chemical being dose are available for trouble free performance with minimal maintenance required for many years.


Pump Technology
Designed using the latest technology a perfect balance has been achieved between using premium components that ensures reliability and performance with affordability for the operator, through the patented stabilised multi-range power supply (100– 240v) which reacts to live working conditions to only draw the power required to activate the pump and reduce energy consumption; the algorithm also compensates for power supply fluctuations for precise and accurate dosing even in challenging conditions.

Remote Management
Connection to WI-FI interface webserver - Modbus RTU RS485 Port for integration into complex systems including programming

Dosage Outputs
Flow rates 0.4 litres - 110 litres up to 20 bar pressure (see below tables for guidance)

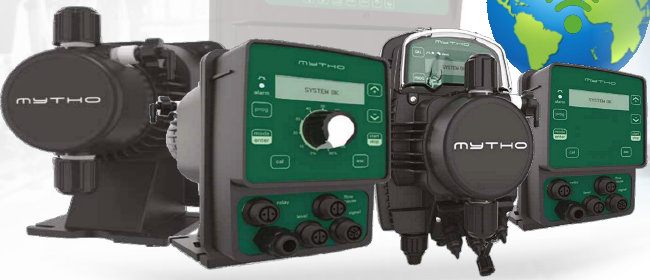

Pumps With Modbus WiFi Technology



Dosing pumps and instruments with online cloud platform access across multiple locations worldwide
   Copyright: - Electronic Dosing Systems 2025
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Beverage & Breweries | Vehicle Washing | Waste Water Treatment | Swimming Pools & Spas |
| Paper Industry | Petroleum | Bottle Washing | Hygiene & Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Electronic Dosing Systems

Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes

Redox Instrument Pump

Chemical dosing pump with powerful digital interface Redox controller large self explanatory graphic display designed specifically for applications where space is at a premium without compromising performance and reliability whilst exploiting reduced installation time and on-going monitoring as a compact stand alone dosing system, the patented algorithm responds to live working conditions providing enough power to active the pumps solenoid which improves the pumps efficiency reduces energy consumption whilst maintaining the precise chemical balance in the system in any condition.

Often used to dose highly aggressive, volatile and toxic chemicals compatible wet-end kits resistant to the chemical being dose are available for trouble free performance with minimal maintenance required for many years.


Instrument pH/Redox
Dosing Pumps




Chemical dosing pump injection valve and footvalve strainer installation kit
Installation Kit
Includes Tubing
Power Algorithm
Reduces Consumption
Simplified Cable Connectors
Internal Screw Terminals

Instrument (pH-Redox) Dosing Pump

Microprocessor chemical dosing pump with integrated pH and Redox instruments in robust wall mounted housing with large graphic display and control keypad. Pump has three operating functions constant-Redox and pH mode with exceptional functionality within the program settings allows the pump to be used as a stand alone dosing system or integrated into complex applications, key factors such as fluctuating flow conditions and chemical dosing alarm parameters responding in real time through the multi-parameter programming software and amended accordingly to any system changes. The self explanatory display and control keypad ensures programming is non-intrusive and straightforward.

N.B. Pump available with low level sensor protection alarm led indication on front panel
Instrument (pH-Redox) Metering Pump

Microprocessor chemical dosing pump with integrated pH and Redox instruments in robust surface mounted housing with large graphic display and control keypad. Pump has three operating functions constant-Redox and pH mode with exceptional functionality within the program settings allows the pump to be used as a stand alone dosing system or integrated into complex applications, key factors such as fluctuating flow conditions and chemical dosing alarm parameters responding in real time through the multi-parameter programming software and amended accordingly to any system changes. The self explanatory display and control keypad ensures programming is non-intrusive and straightforward.

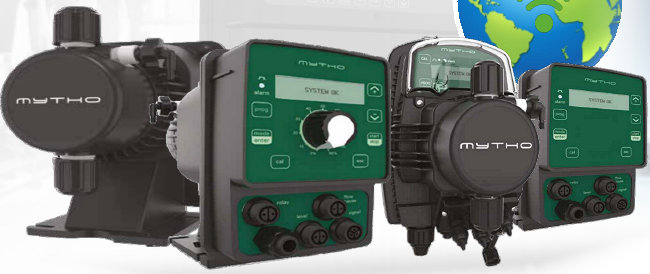

Chemical metering pump range with pH and redox controllers Chemical dosing pump range with pH and redox controllers eds_website_march_2025_latest003006.jpg
N.B. Pump available with low level sensor protection alarm led indication on front panel
Installation Kit
Includes Tubing
Chemical metering pump injection valve and footvalve strainer installation kit
