Open Amperometric System
Key Features
Chlorine cell characterised with excellent
transparency robust design and exceptional resistance to chemical agents
Designed for instantaneous response
to chlorine levels with integrated continuous self cleaning maintenance system
Water Flow Regulation -
Proximity Sensor - Provision for housing additional pH/Redox & temperature Electrodes
Technical
Details
Measurement :- 0-5.00 PPM - Proximity Switch (optional) - Probe Signal
Output :- 12v dc
Temperature :- 5-60°C - Pressure :- 5 Bar - Flow :- 40χ50
l/hr - Self Cleaning System
Applications
| Water Treatment | Swimming Pools | Drinking
Water | Wastewater Treatment | Beverage Industry |
Open Chlorine Cells
Amperometric free chlorine cell open system in robust multifunction transparent metacrylate holder
with incoming flow regulation valve for precise measurement of free inorganic chlorine with provision to
house two additional sensors including temperature compensation sensor and flow proximity sensor, chlorine cell
equipped with platinum and copper electrodes that continuously analyses in real-time free chlorine flowing through the chlorine
cell open system with self cleaning system to maintain measurement precision.

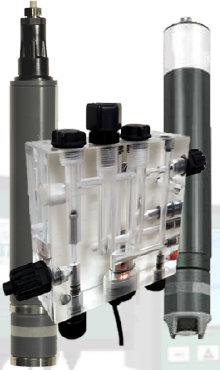

Chlorine Sensors
(Chlorine Dioxide Sensors)
Chlorine Measurement Sensors
Free chlorine and Total chlorine amperometric sensors designed using
premium components providing real-time measurement with increased response time ensures efficient chemical
regulation stability and control with minimum maintenance requirement and increased service life, analysing chlorine content
in water through amperometric measurement technology has long been recognized as the most precise and reliable
type of sensor with high resolution real-time readings displayed by the chlorine controller.
Chlorine Dioxide Sensors
Chlorine dioxide measurement is achieved using various methods the most common being using amperometric sensors designed
using a permeable selective membrane cap housing a specialized electrolyte allowing chlorine dioxide to diffuse into
the electrolyte causing an electrical current change between the electrodes to form a basis of measurement, the
membrane forms a protective barrier from harmful contaminants reaching the electrodes maintaining real-time ppm measurement and
increased service life.
Electronic Dosing Systems
Tel 01299 825 656 Email info@electronicdosingsystems.co.uk
Solutions For All Metering & Measurement Processes
Copyright: - Electronic Dosing Systems 2026
| Water Treatment | Electroplating | Cooling Towers | Industrial Boilers | Paper Industry | Vehicle Washing |
Wastewater | Swimming Pools & Spas |
| Beverage & Brewery | Petroleum | Bottle Washing | Hygiene &
Cleaning | Biotechnology | Food Industry | Pharmaceutical Industry |
Routine Maintenance
Sensors use a permeable selective membrane to isolate the electrodes from the process water
a significant advantage when it comes to maintenance with the membrane surface just requiring a gentle rinse if it
becomes coated in biofilm or scale to maintain measurement accuracy, the selective membrane houses the electrodes
and electrolyte separating them from the process water therefore they rarely need cleaning only requiring the
electrolyte replaced every 3-6 months due to it being consumed over time.
Integrated Electronics
Amperometric sensors house a complex suite of electronics that consists of several key stages designed
to convert a chemical reaction within the selective membrane into a raw readable signal which is amplified by the integrated
electronics into a robust signal that is less less susceptible to electrical noise.
Free Chlorine Sensors
Modern Free Chlorine Amperometric Sensors provides high resolution real-time monitoring
of active chlorine in water providing a constant stream of data to maintain safe and effective disinfection levels across
a wide variety processes making them essential for automated disinfection dosing systems, these high performance sensors provide
immediate feedback allowing precise control even at low chlorine levels essential for drinking water processes, swimming
pools and industrial cooling towers.
Key Features
Sensor characterised with sophisticated integrated electronics with
excellent resistance aggressive chemical
Diaphragm membrane-electrode reduces flow dependence
to deliver consistent measurement performances
Integrated automatic temperature compensation that
off-sets working temperature fluctuations in the system
We recommend replacing
the electrolyte at six month intervals to maintain calibration & accuracy of sensor
Technical
Details
Measurements :- 0χ0.5 PPM - 0χ2.00 PPM - 0χ5.00 PPM - 0χ10 PPM - 0χ200 PPM
Concentrations
pH Range :- 4χ12 - Temperature :- 0-45°C - Pressure :- 1 Bar
- Electrodes Silver Chloride-Gold
Signal Output :- 4χ20 mA - Flow Rate :- 30 l/hr -
Diameters :- 25mm Dia x 175mm Length
Applications
| Cooling Towers | Swimming Pools | Drinking
Water | Wastewater Treatment | Seawater Disinfection | Potable Water |
N.B. High Pressure Inorganic Chlorine Sensors Available
Total Chlorine Sensors
Ensure the safety and compliance of your water systems with our range of state-of-the-art high-performanceAmperometric Total Chlorine Sensors engineered for continuous real-time monitoring of free chlorine and combined
chlorine (chloramines) without the need for expensive reagents or frequent maintenance, the sophisticated electronics provide
immediate feedback allowing precise control even at very low chlorine levels essential in drinking water systems, swimming
pools and industrial cooling tower applications.
Key Features
Sensor characterised with sophisticated integrated electronics with
excellent resistance aggressive chemical
Diaphragm membrane-electrode reduces flow dependence
to deliver consistent measurement performances
Integrated automatic temperature compensation that
off-sets working temperature fluctuations in the system
We recommend replacing
the electrolyte at six month intervals to maintain calibration & accuracy of sensor
Technical
Details
Measurement Ranges :- 0.00χ2.00 PPM - 0.00χ5.00 PPM - 0.00χ10 PPM Total
Chlorine Concentrations
pH Range :- 2χ12 - Temperature :- 0-45°C - Pressure
:- 0.5 Bar - Electrodes Silver Chloride-Gold
Signal Output :- 4χ20 mA - Flow Rate :- 30
l/hr - Diameters :- 25mm Dia x 175mm Length
Applications
| Cooling Towers | Swimming
Pools | Drinking Water | Wastewater Treatment | Seawater Disinfection | Potable Water |
Chlorine Dioxide Sensors
In disinfection processes maintaining precision isn't just a preference its a critical requirement
our state-of-the-art high performance Chlorine Dioxide Sensors delivers real-time feedback to maintain safety,
ensure regulatory compliance and optimise chemical dosing even in challenging environments, the selective membrane generates
a current directly proportional to the concentration of dissolved chlorine dioxide in the system essential in cooling towers,
swimming pools and drinking water processes.
Key Features
Sensor characterised with sophisticated integrated electronics with
excellent resistance aggressive chemical
Diaphragm membrane-electrode reduces flow dependence
to deliver consistent measurement performances
Integrated automatic temperature compensation that
off-sets working temperature fluctuations in the system
We recommend replacing
the electrolyte at six month intervals to maintain calibration & accuracy of sensor
Technical
Details
Measurement Ranges :- 0.00χ1.00 PPM (High Pressure) - 0.00χ2.00 PPM - 0.00χ10.00 PPM
pH Range :- 1χ11 - Temperature :- 0-45°C - Pressures :- 0.5 & 0-8 Bar -
Electrodes Gold
Signal Output :- 4χ20 mA - Flow Rate :- 30 l/hr - Diameters :- 25mm
Dia x 175mm Length
Applications
| Cooling Towers | Wastewater Treatment | Drinking
Water | Hot Water Systems | CIP (Clean In Place) |
N.B. High Pressure Chlorine Dioxide Sensors Available
